Drawn-Seamless EMI/RFI Shields

MS Part #

Configuration

Length

Width

Height

Ventilation

Raw Material

Packaging

COO

MS Part #	Configuration	Length	Width	Height	Ventilation	Raw Material	Packaging	COO

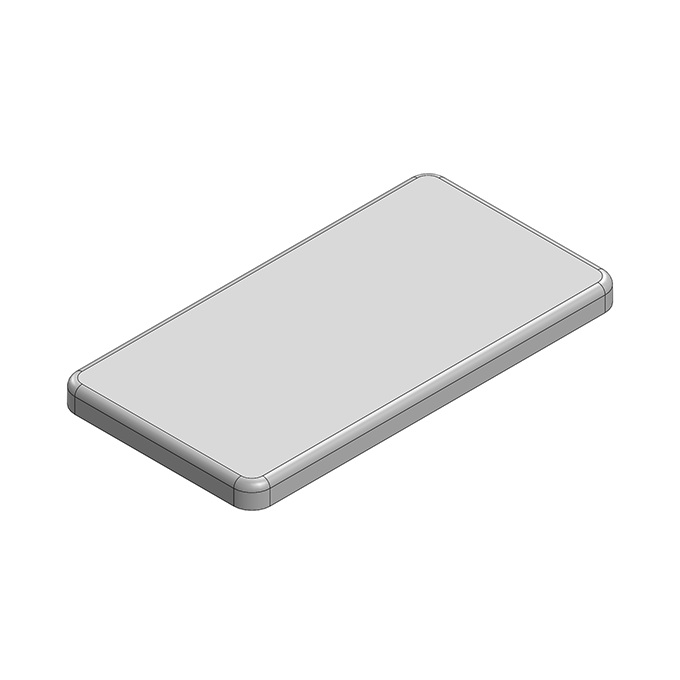

Get MS409-10S Drawn-Seamless EMI-RF Shield 40.9 x 21.5 x 2.5mm (CRS)	RF Shield (1-Piece Shield)	40.9 mm	21.5 mm	2.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS409-10S-NS Drawn-Seamless EMI-RF Shield 40.9 x 21.5 x 2.5mm (Nickel-Silver)	RF Shield (1-Piece Shield)	40.9 mm	21.5 mm	2.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

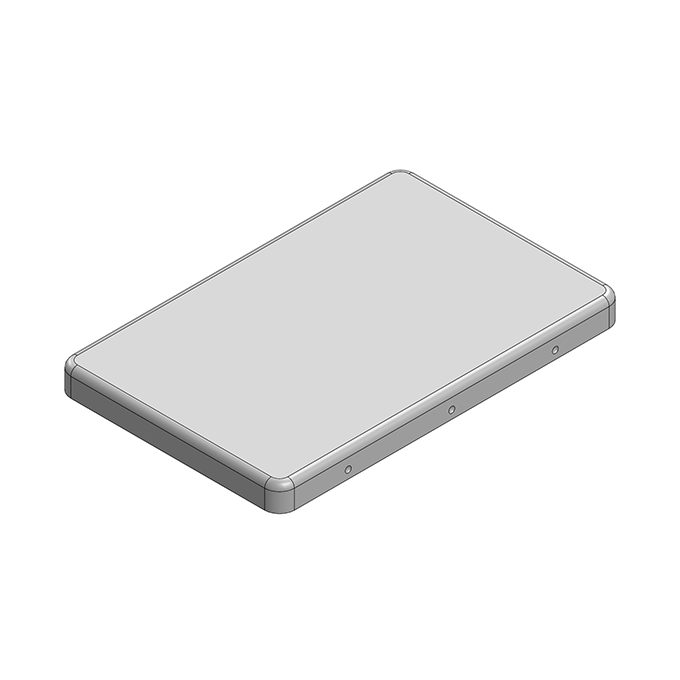

Get MS410-10C Drawn-Seamless EMI-RF Shield Cover 41.6 x 27 x 3.1mm (CRS)	RF Cover (2-Piece Shield)	41.6 mm	27 mm	3.1 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS410-10C-NS Drawn-Seamless EMI-RF Shield Cover 41.6 x 27 x 3.1mm (Nickel-Silver)	RF Cover (2-Piece Shield)	41.6 mm	27 mm	3.1 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

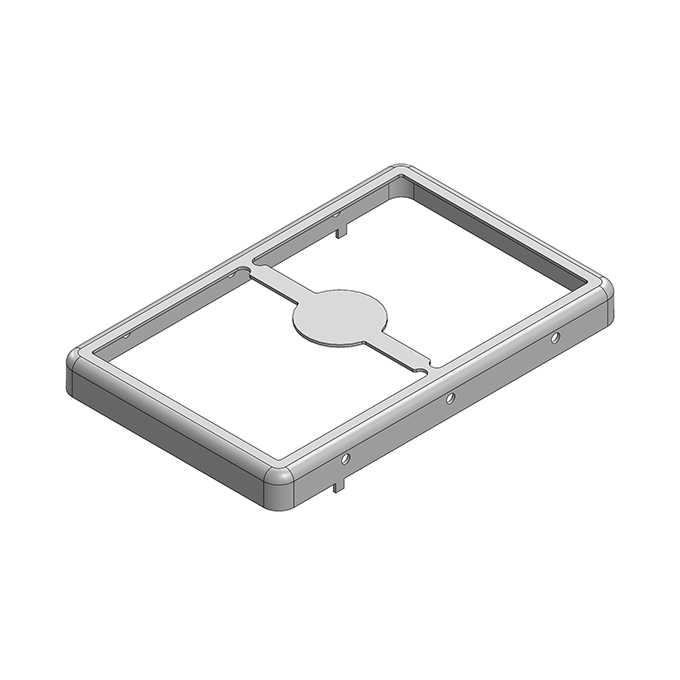

Get MS410-10F Drawn-Seamless EMI-RF Shield Frame 41 x 26.4 x 3.7mm (CRS)	RF Frame (2-Piece Shield)	41 mm	26.4 mm	3.7 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS410-10F-NS Drawn-Seamless EMI-RF Shield Frame 41 x 26.4 x 3.7mm (Nickel-Silver)	RF Frame (2-Piece Shield)	41 mm	26.4 mm	3.7 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

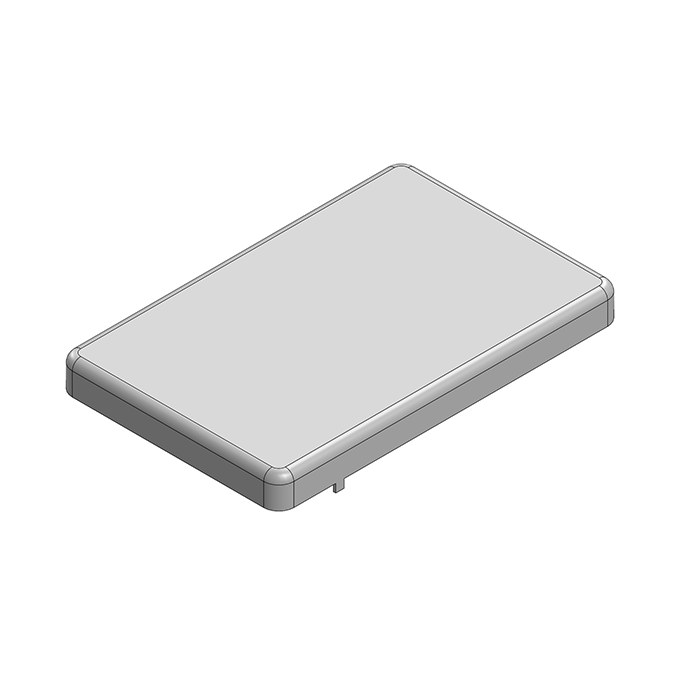

Get MS410-10S Drawn-Seamless EMI-RF Shield 41 x 26.4 x 3.7mm (CRS)	RF Shield (1-Piece Shield)	41 mm	26.4 mm	3.7 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS410-10S-NS Drawn-Seamless EMI-RF Shield 41 x 26.4 x 3.7mm (Nickel-Silver)	RF Shield (1-Piece Shield)	41 mm	26.4 mm	3.7 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

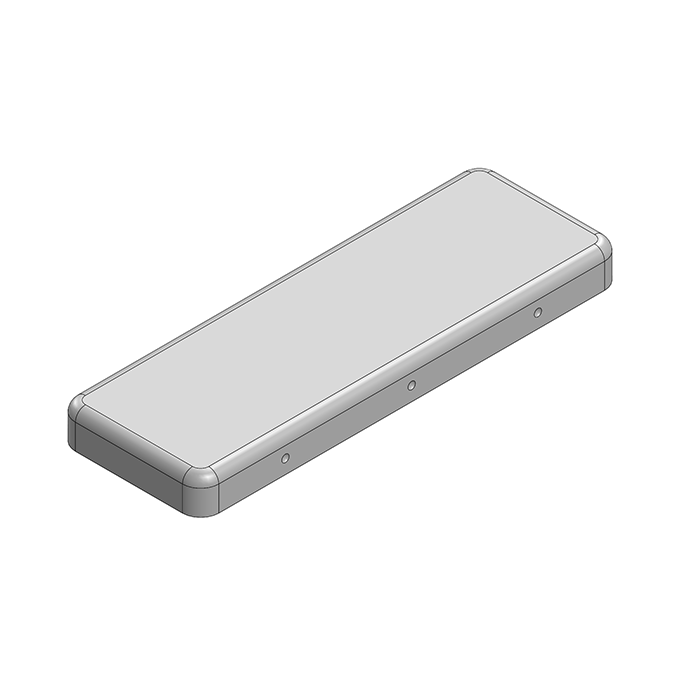

Get MS412-10C Drawn-Seamless EMI-RF Shield Cover 41.8 x 14.2 x 3.2mm (CRS)	RF Cover (2-Piece Shield)	41.8 mm	14.2 mm	3.2 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS412-10C-NS Drawn-Seamless EMI-RF Shield Cover 41.8 x 14.2 x 3.2mm (Nickel-Silver)	RF Cover (2-Piece Shield)	41.8 mm	14.2 mm	3.2 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

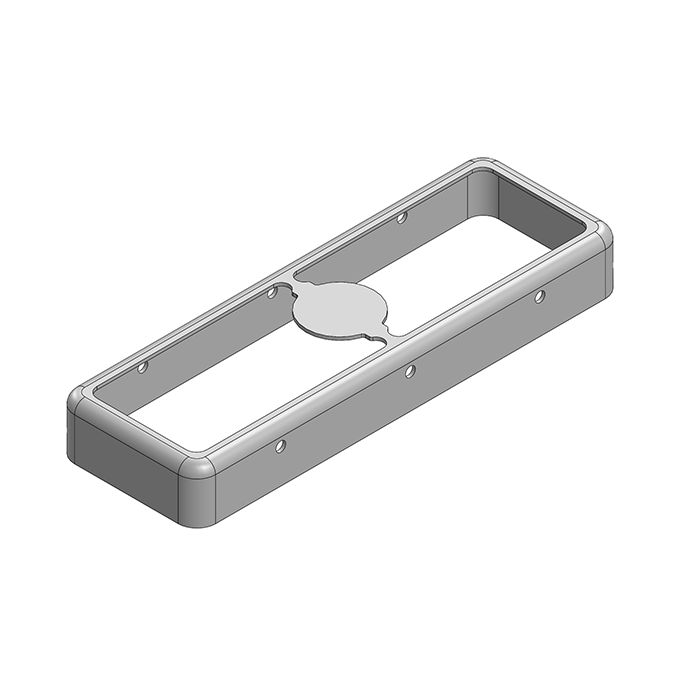

Get MS412-10F Drawn-Seamless EMI-RF Shield Frame 41.2 x 13.6 x 5.1mm (CRS)	RF Frame (2-Piece Shield)	41.2 mm	13.6 mm	5.1 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS412-10F-NS Drawn-Seamless EMI-RF Shield Frame 41.2 x 13.6 x 5.1mm (Nickel-Silver)	RF Frame (2-Piece Shield)	41.2 mm	13.6 mm	5.1 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
