MS Part # Configuration Length Width Height Ventilation Raw Material Packaging COO
MS460-10S
Get
MS460-10S
Drawn-Seamless EMI-RF Shield 46 x 14.8 x 2mm (CRS)
RF Shield (1-Piece Shield) 46 mm 14.8 mm 2 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)

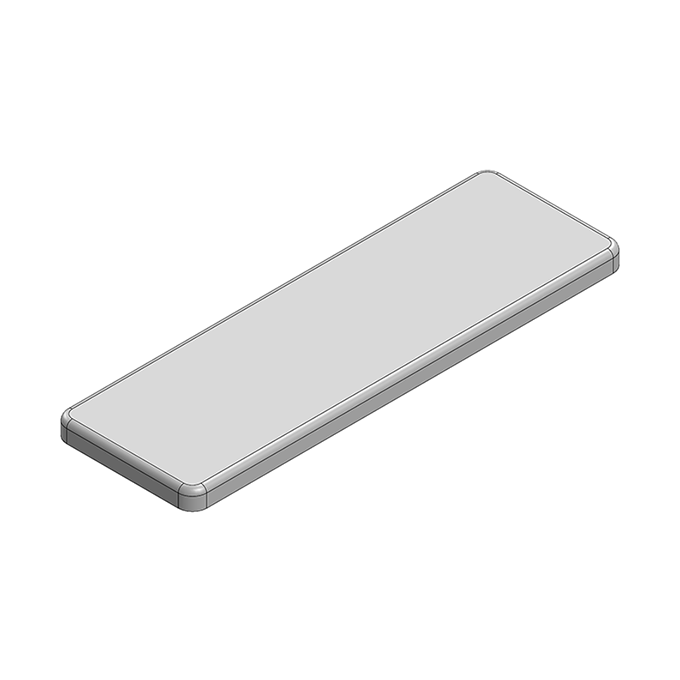

MS460-10S-NS
Get
MS460-10S-NS
Drawn-Seamless EMI-RF Shield 46 x 14.8 x 2mm (Nickel-Silver)
RF Shield (1-Piece Shield) 46 mm 14.8 mm 2 mm Non-Vented Nickel-Silver Tray IL (Israel)
Get

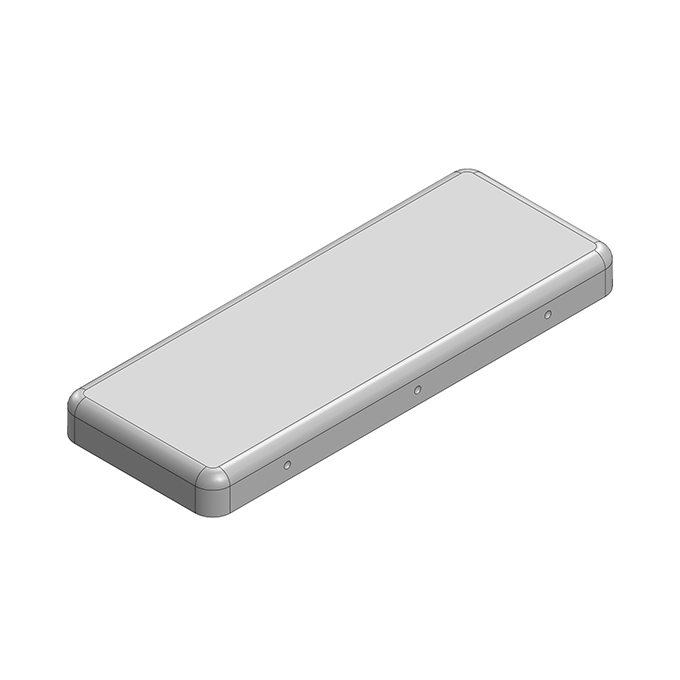

MS466-10C
Drawn-Seamless EMI-RF Shield Cover 47.2 x 17.9 x 4mm (CRS)
RF Cover (2-Piece Shield) 47.2 mm 17.9 mm 4 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
Get
MS466-10C-NS
Drawn-Seamless EMI-RF Shield Cover 47.2 x 17.9 x 4mm (Nickel-Silver)
RF Cover (2-Piece Shield) 47.2 mm 17.9 mm 4 mm Non-Vented Nickel-Silver Tray IL (Israel)
Get

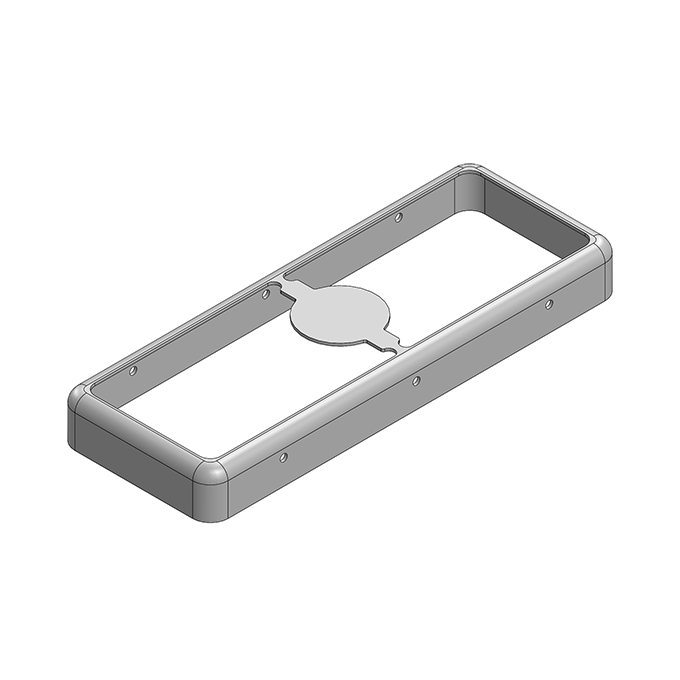

MS466-10F
Drawn-Seamless EMI-RF Shield Frame 46.6 x 17.3 x 5mm (CRS)
RF Frame (2-Piece Shield) 46.6 mm 17.3 mm 5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
Get
MS466-10F-NS
Drawn-Seamless EMI-RF Shield Frame 46.6 x 17.3 x 5mm (Nickel-Silver)
RF Frame (2-Piece Shield) 46.6 mm 17.3 mm 5 mm Non-Vented Nickel-Silver Tray IL (Israel)
Get

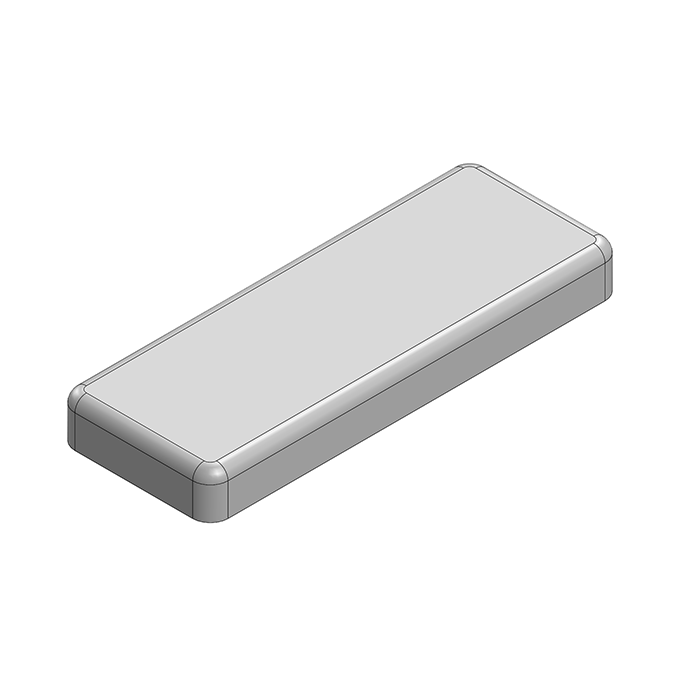

MS466-10S
Drawn-Seamless EMI-RF Shield 46.6 x 17.3 x 5mm (CRS)
RF Shield (1-Piece Shield) 46.6 mm 17.3 mm 5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
Get
MS466-10S-NS
Drawn-Seamless EMI-RF Shield 46.6 x 17.3 x 5mm (Nickel-Silver)
RF Shield (1-Piece Shield) 46.6 mm 17.3 mm 5 mm Non-Vented Nickel-Silver Tray IL (Israel)
Get

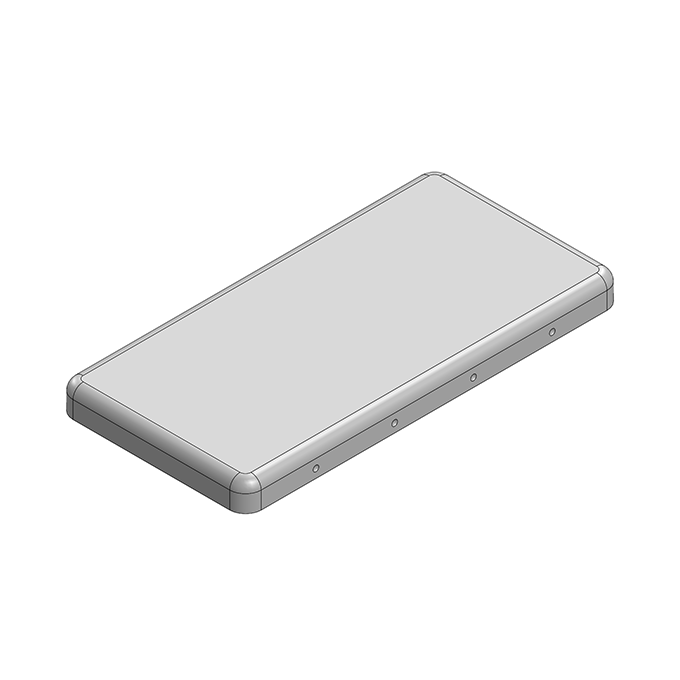

MS473-10C
Drawn-Seamless EMI-RF Shield Cover 47.9 x 23.9 x 3.5mm (CRS)
RF Cover (2-Piece Shield) 47.9 mm 23.9 mm 3.5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
Get
MS473-10C-NS
Drawn-Seamless EMI-RF Shield Cover 47.9 x 23.9 x 3.5mm (Nickel-Silver)
RF Cover (2-Piece Shield) 47.9 mm 23.9 mm 3.5 mm Non-Vented Nickel-Silver Tray IL (Israel)
Get
MS473-10CP
Drawn-Seamless EMI-RF Shield Cover 47.9 x 23.9 x 3.5mm (CRS)
RF Cover (2-Piece Shield) 47.9 mm 23.9 mm 3.5 mm Vented Tin-Steel (CRS) Tray IL (Israel)
Get

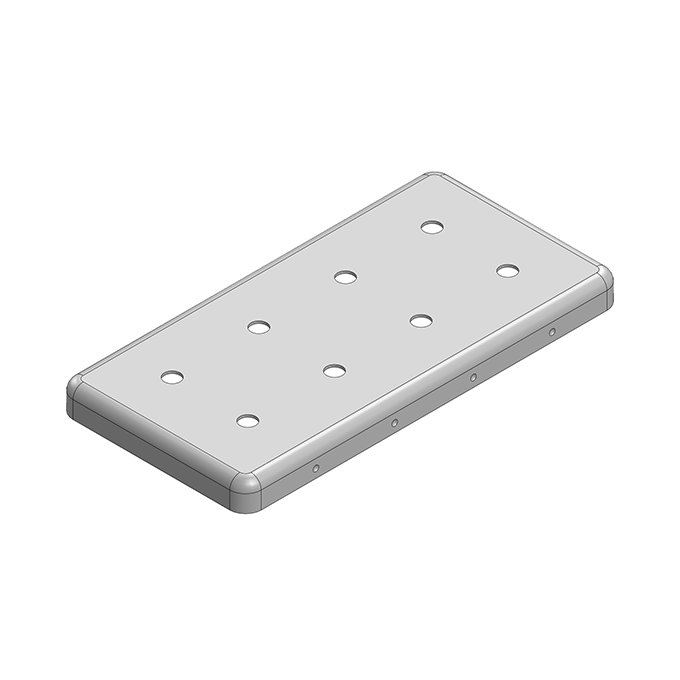

MS473-10CP-NS
Drawn-Seamless EMI-RF Shield Cover 47.9 x 23.9 x 3.5mm (Nickel-Silver)
RF Cover (2-Piece Shield) 47.9 mm 23.9 mm 3.5 mm Vented Nickel-Silver Tray IL (Israel)
