Drawn-Seamless EMI/RFI Shields

MS Part #

Configuration

Length

Width

Height

Ventilation

Raw Material

Packaging

COO

MS Part #	Configuration	Length	Width	Height	Ventilation	Raw Material	Packaging	COO
Get MS473-10F Drawn-Seamless EMI-RF Shield Frame 47.3 x 23.3 x 5.3mm (CRS)	RF Frame (2-Piece Shield)	47.3 mm	23.3 mm	5.3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)

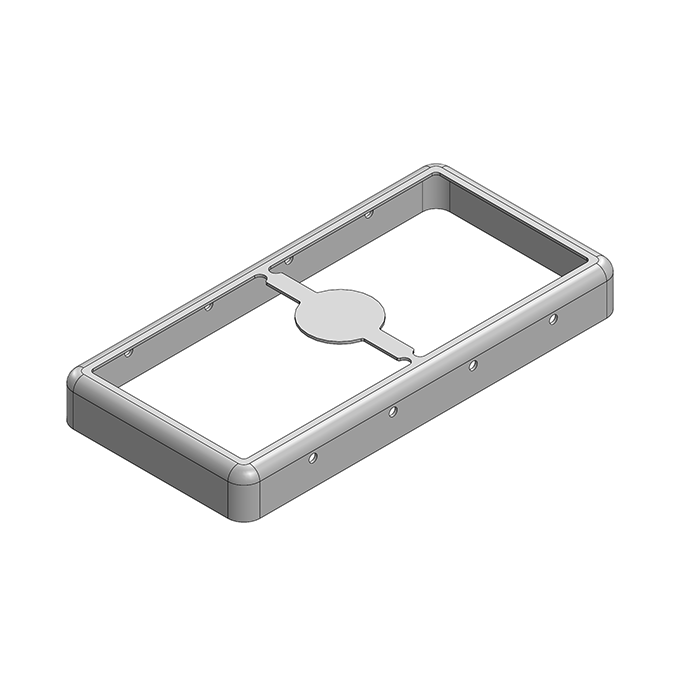

Get MS473-10F-NS Drawn-Seamless EMI-RF Shield Frame 47.3 x 23.3 x 5.3mm (Nickel-Silver)	RF Frame (2-Piece Shield)	47.3 mm	23.3 mm	5.3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

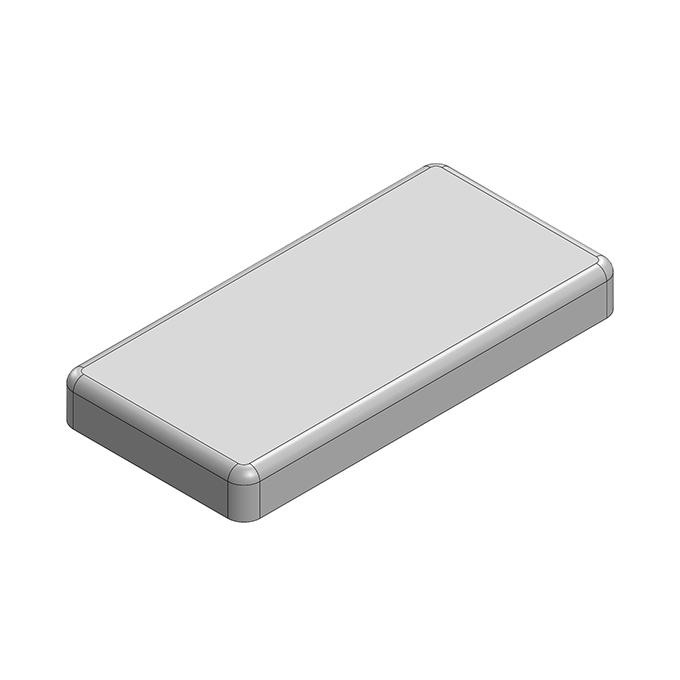

Get MS473-10S Drawn-Seamless EMI-RF Shield 47.3 x 23.3 x 5.3mm (CRS)	RF Shield (1-Piece Shield)	47.3 mm	23.3 mm	5.3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS473-10S-NS Drawn-Seamless EMI-RF Shield 47.3 x 23.3 x 5.3mm (Nickel-Silver)	RF Shield (1-Piece Shield)	47.3 mm	23.3 mm	5.3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS477-10C Drawn-Seamless EMI-RF Shield Cover 48.3 x 18.8 x 3mm (CRS)	RF Cover (2-Piece Shield)	48.3 mm	18.8 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)

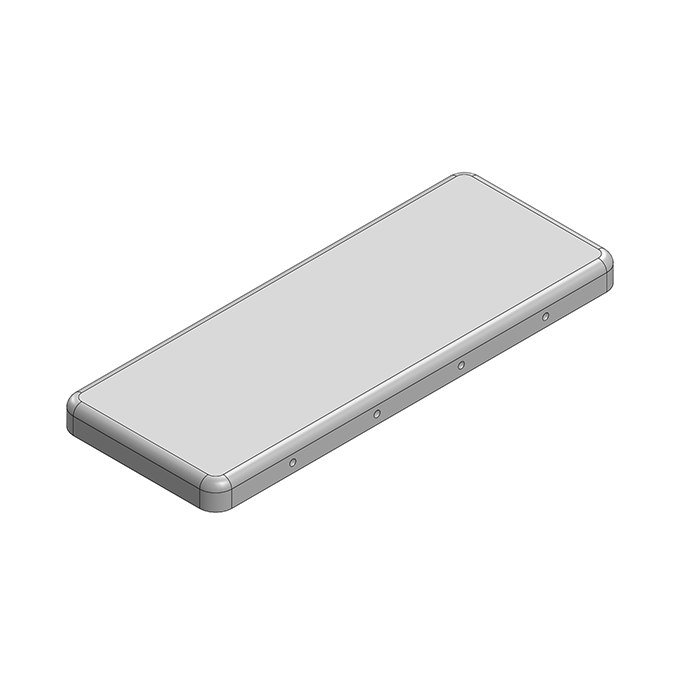

Get MS477-10C-NS Drawn-Seamless EMI-RF Shield Cover 48.3 x 18.8 x 3mm (Nickel-Silver)	RF Cover (2-Piece Shield)	48.3 mm	18.8 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

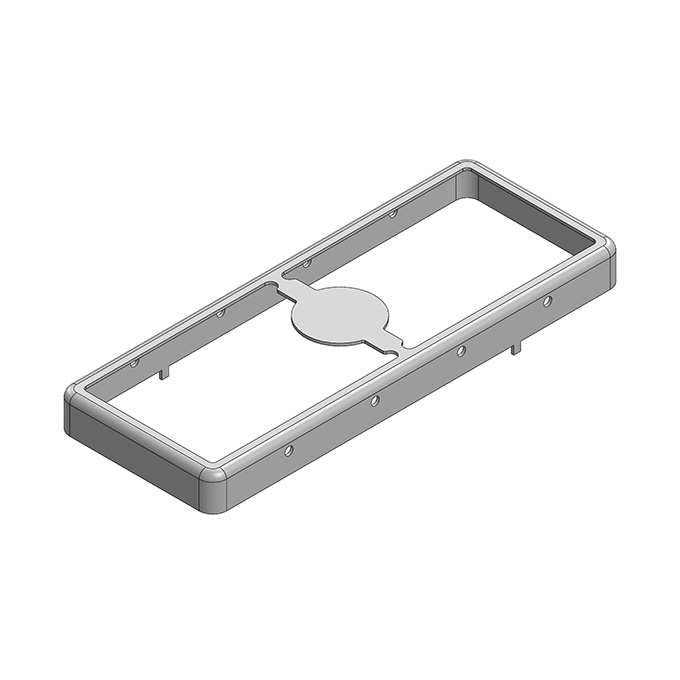

Get MS477-10F Drawn-Seamless EMI-RF Shield Frame 47.7 x 18.2 x 4mm (CRS)	RF Frame (2-Piece Shield)	47.7 mm	18.2 mm	4 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS477-10F-NS Drawn-Seamless EMI-RF Shield Frame 47.7 x 18.2 x 4mm (Nickel-Silver)	RF Frame (2-Piece Shield)	47.7 mm	18.2 mm	4 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS477-10S Drawn-Seamless EMI-RF Shield 47.7 x 18.2 x 4mm (CRS)	RF Shield (1-Piece Shield)	47.7 mm	18.2 mm	4 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS477-10S-NS Drawn-Seamless EMI-RF Shield 47.7 x 18.2 x 4mm (Nickel-Silver)	RF Shield (1-Piece Shield)	47.7 mm	18.2 mm	4 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS483-10C Drawn-Seamless EMI-RF Shield Cover 48.9 x 44.9 x 4mm (CRS)	RF Cover (2-Piece Shield)	48.9 mm	44.9 mm	4 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)

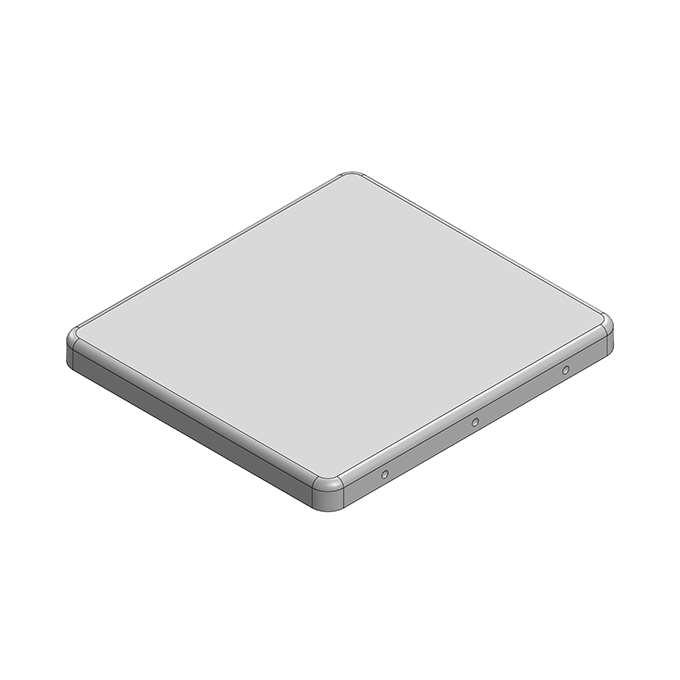

Get MS483-10C-NS Drawn-Seamless EMI-RF Shield Cover 48.9 x 44.9 x 4mm (Nickel-Silver)	RF Cover (2-Piece Shield)	48.9 mm	44.9 mm	4 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
