MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
| MS Part # | Configuration | Length | Width | Height | Ventilation | Raw Material | Packaging | COO |
|---|---|---|---|---|---|---|---|---|

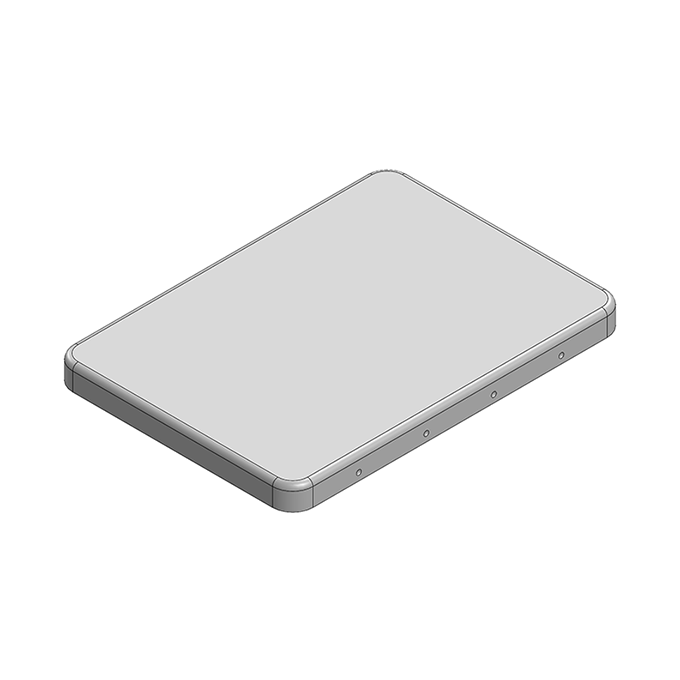

| RF Cover (2-Piece Shield) | 49.6 mm | 35.6 mm | 3.5 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Cover (2-Piece Shield) | 49.6 mm | 35.6 mm | 3.5 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) | |

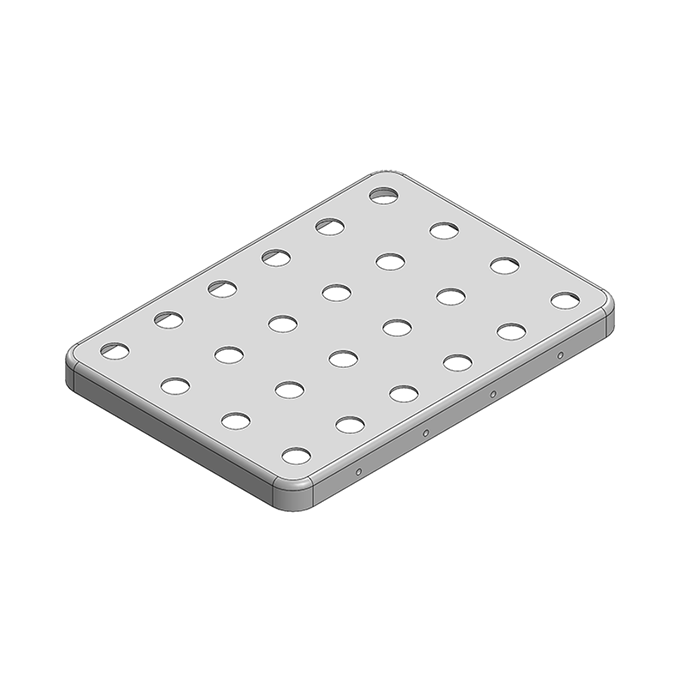

| RF Cover (2-Piece Shield) | 49.6 mm | 35.6 mm | 3.5 mm | Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Cover (2-Piece Shield) | 49.6 mm | 35.6 mm | 3.5 mm | Vented | Nickel-Silver | Tray | IL (Israel) | |

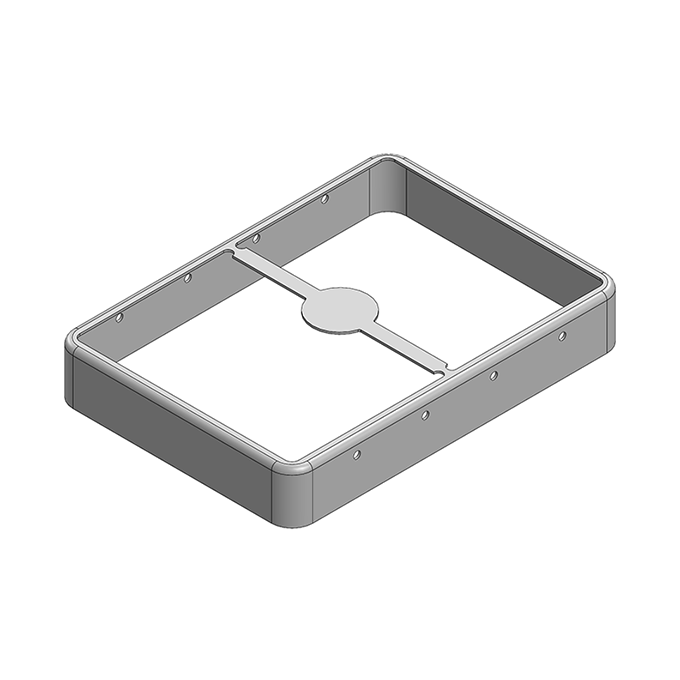

| RF Frame (2-Piece Shield) | 49 mm | 35 mm | 7.5 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Frame (2-Piece Shield) | 49 mm | 35 mm | 7.5 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) | |

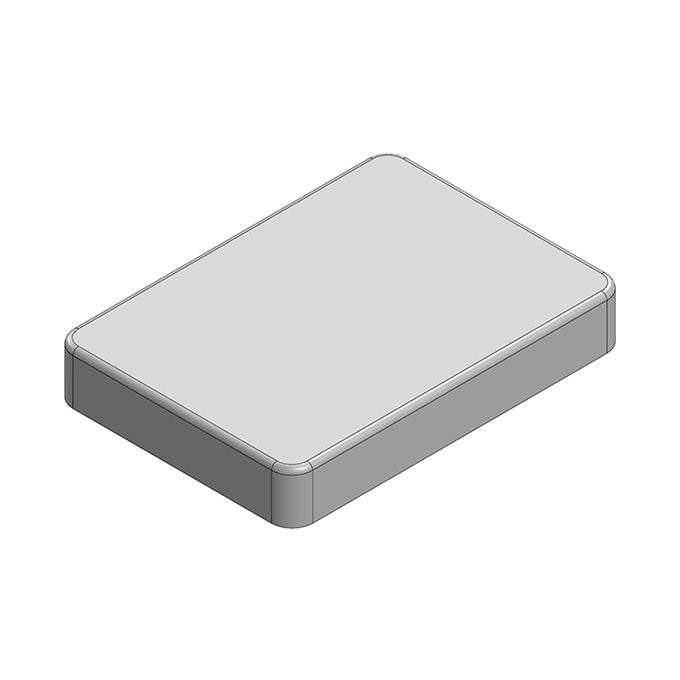

| RF Shield (1-Piece Shield) | 49 mm | 35 mm | 7.5 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Shield (1-Piece Shield) | 49 mm | 35 mm | 7.5 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) | |

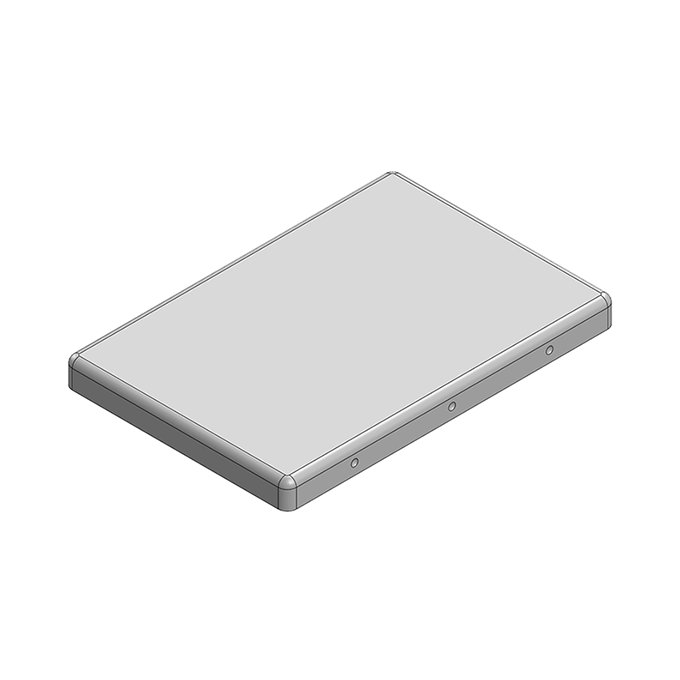

| RF Cover (2-Piece Shield) | 50.7 mm | 34.5 mm | 4 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Cover (2-Piece Shield) | 50.7 mm | 34.5 mm | 4 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) | |

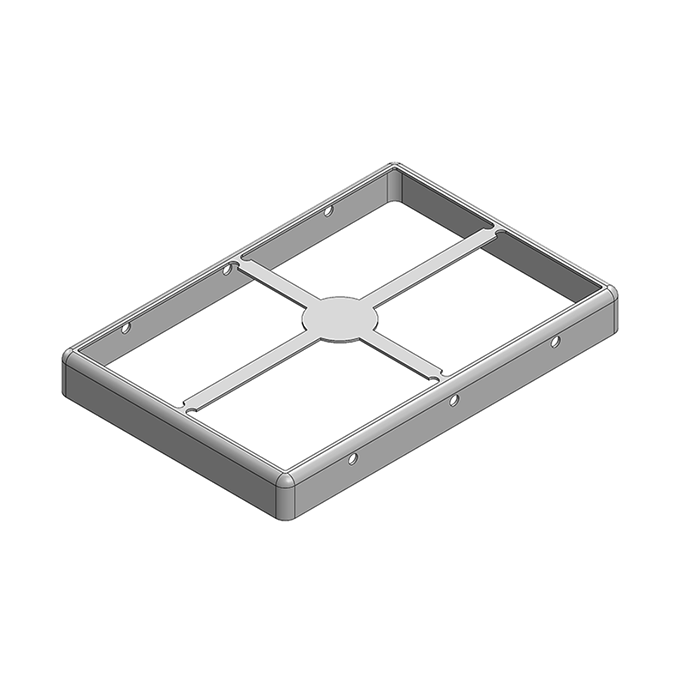

| RF Frame (2-Piece Shield) | 50.1 mm | 33.9 mm | 5.3 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Frame (2-Piece Shield) | 50.1 mm | 33.9 mm | 5.3 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) |
