MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
| MS Part # | Configuration | Length | Width | Height | Ventilation | Raw Material | Packaging | COO |
|---|---|---|---|---|---|---|---|---|

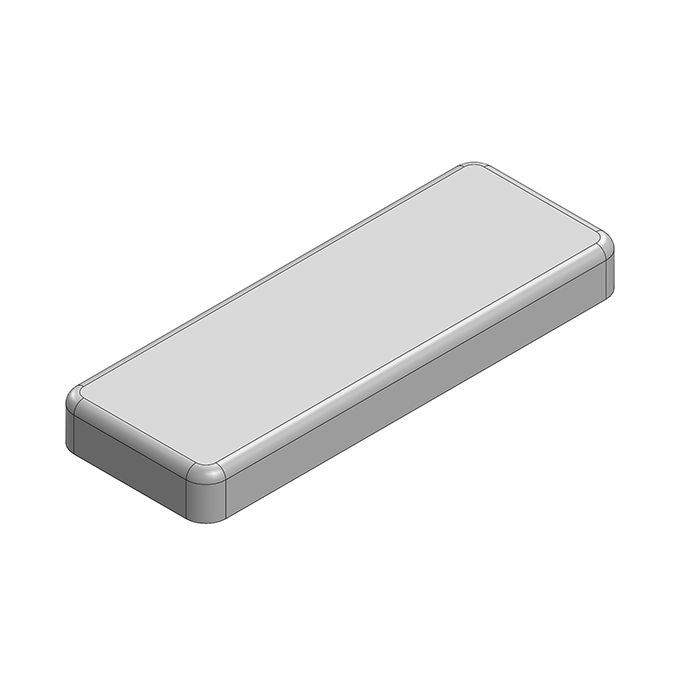

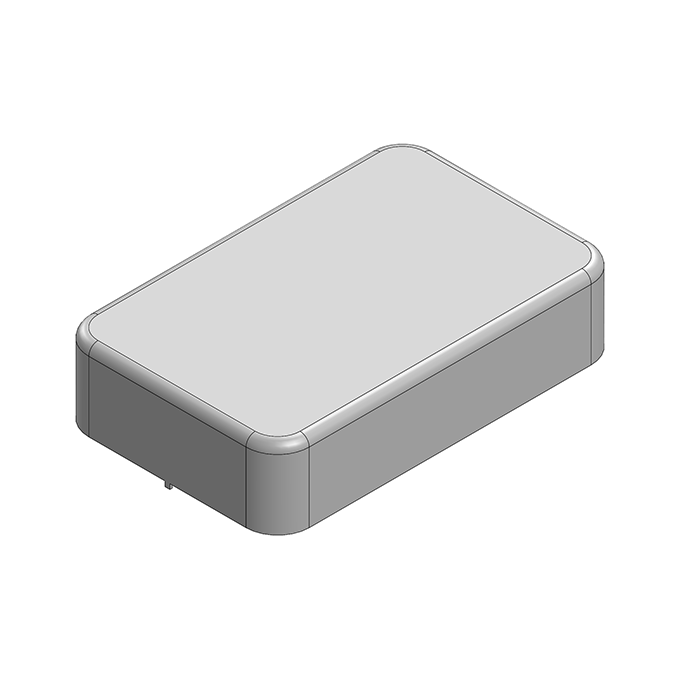

| RF Shield (1-Piece Shield) | 41.5 mm | 26.5 mm | 9.5 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Shield (1-Piece Shield) | 41.5 mm | 26.5 mm | 9.5 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) | |

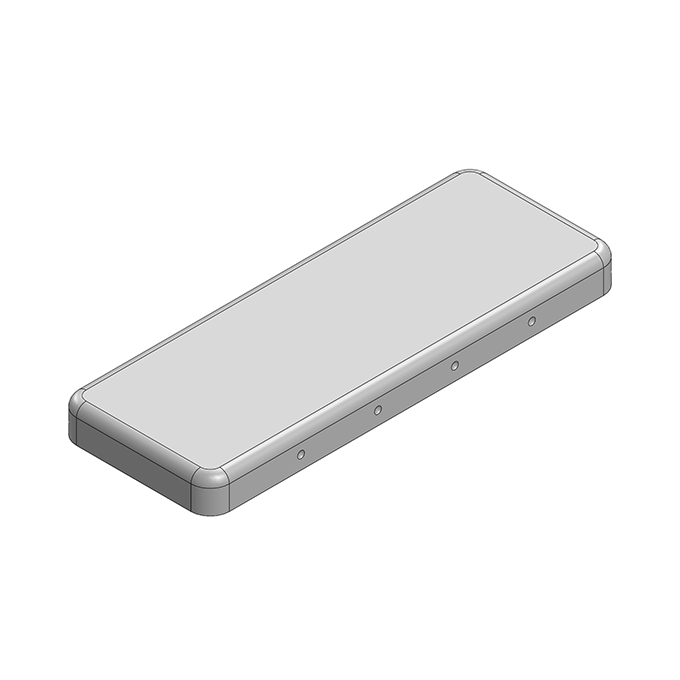

| RF Cover (2-Piece Shield) | 42.9 mm | 15.9 mm | 3.5 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Cover (2-Piece Shield) | 42.9 mm | 15.9 mm | 3.5 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) | |

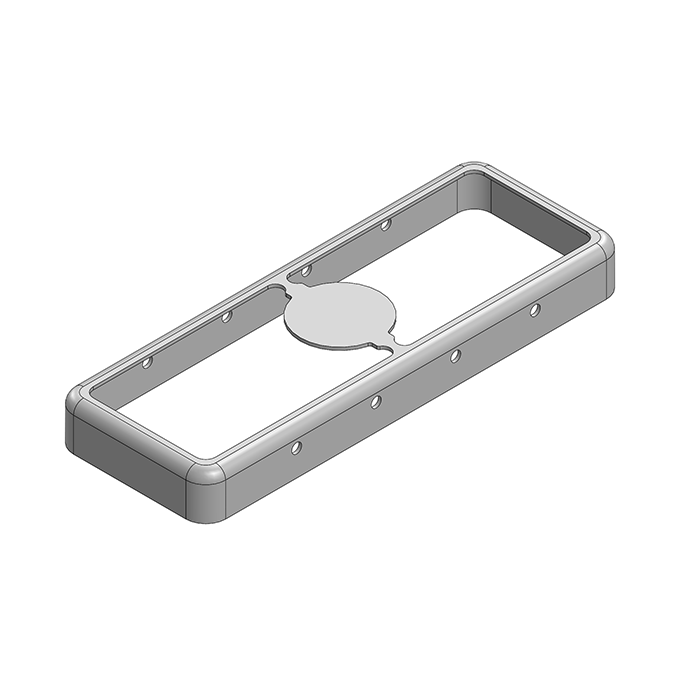

| RF Frame (2-Piece Shield) | 42.3 mm | 15.3 mm | 4.4 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Frame (2-Piece Shield) | 42.3 mm | 15.3 mm | 4.4 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) | |
| RF Shield (1-Piece Shield) | 42.3 mm | 15.3 mm | 4.4 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Shield (1-Piece Shield) | 42.3 mm | 15.3 mm | 4.4 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) | |

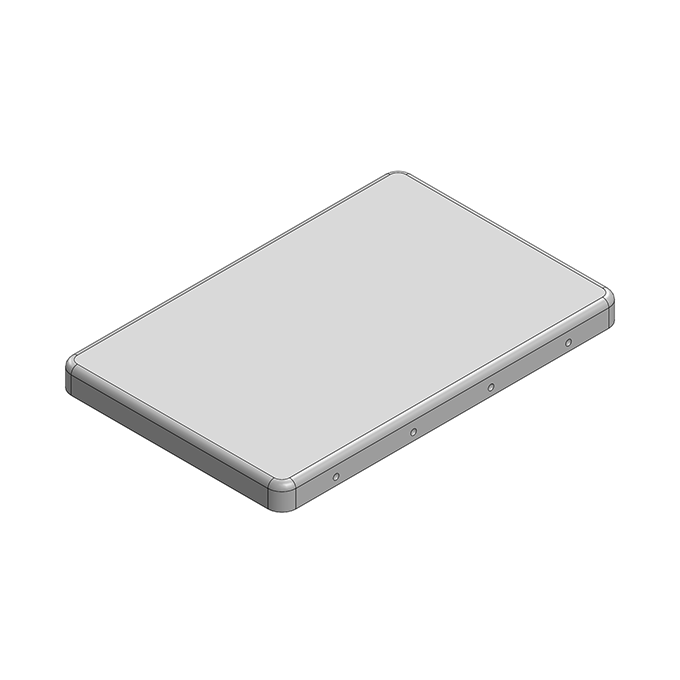

| RF Cover (2-Piece Shield) | 44 mm | 29 mm | 3.1 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Cover (2-Piece Shield) | 44 mm | 29 mm | 3.1 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) | |

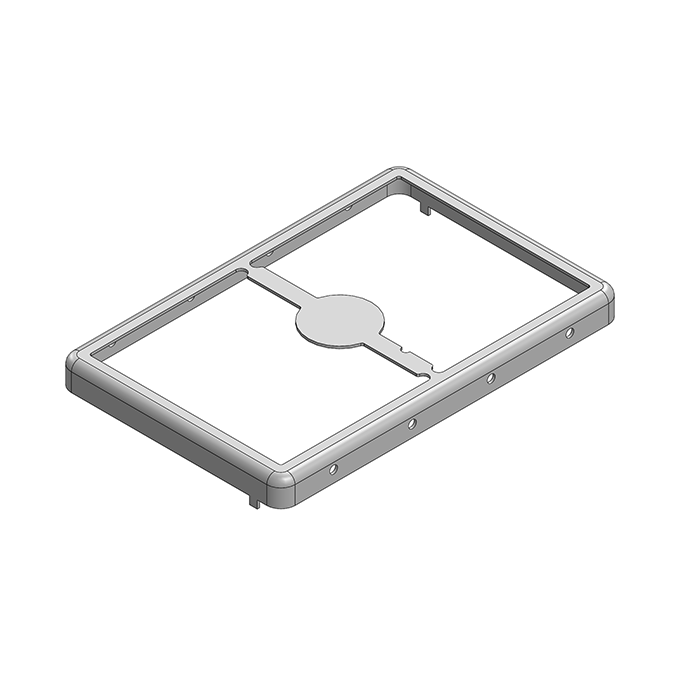

| RF Frame (2-Piece Shield) | 43.4 mm | 28.4 mm | 3.3 mm | Non-Vented | Tin-Steel (CRS) | Tray | IL (Israel) | |
| RF Frame (2-Piece Shield) | 43.4 mm | 28.4 mm | 3.3 mm | Non-Vented | Nickel-Silver | Tray | IL (Israel) |
