  • Drawn-Seamless EMI/RFI Shields

822 RF Shields

  • MS Part #: A-Z
  • MS Part #: Z-A
  • Length: A-Z
  • Length: Z-A
  • Width: A-Z
  • Width: Z-A
  • Height: A-Z
  • Height: Z-A
Download Table
MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
MS Part # Configuration Length Width Height Ventilation Raw Material Packaging COO

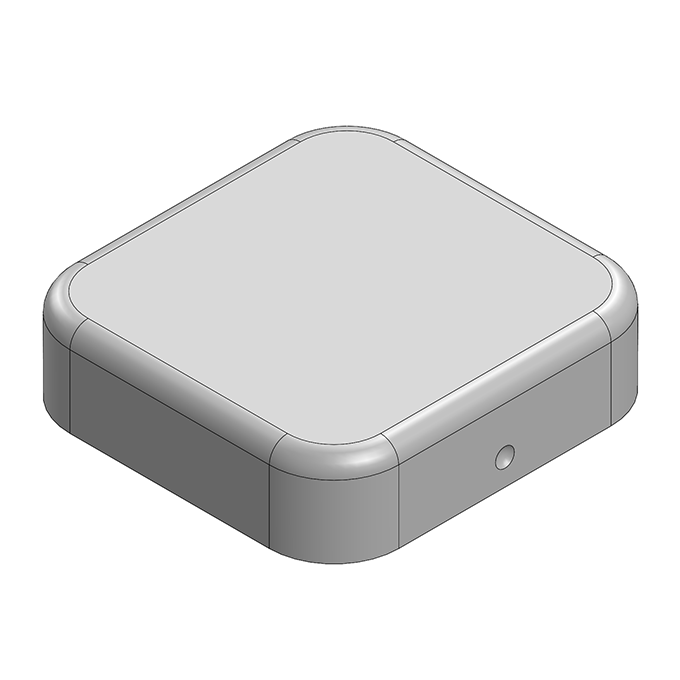

MS128-10C Shield
Get
MS128-10C
Drawn-Seamless EMI-RF Shield Cover 13.2 x 12.7 x 3.5mm (CRS)
RF Cover (2-Piece Shield) 13.2 mm 12.7 mm 3.5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS128-10C-NS Shield
Get
MS128-10C-NS
Drawn-Seamless EMI-RF Shield Cover 13.2 x 12.7 x 3.5mm (Nickel-Silver)
RF Cover (2-Piece Shield) 13.2 mm 12.7 mm 3.5 mm Non-Vented Nickel-Silver Tray IL (Israel)

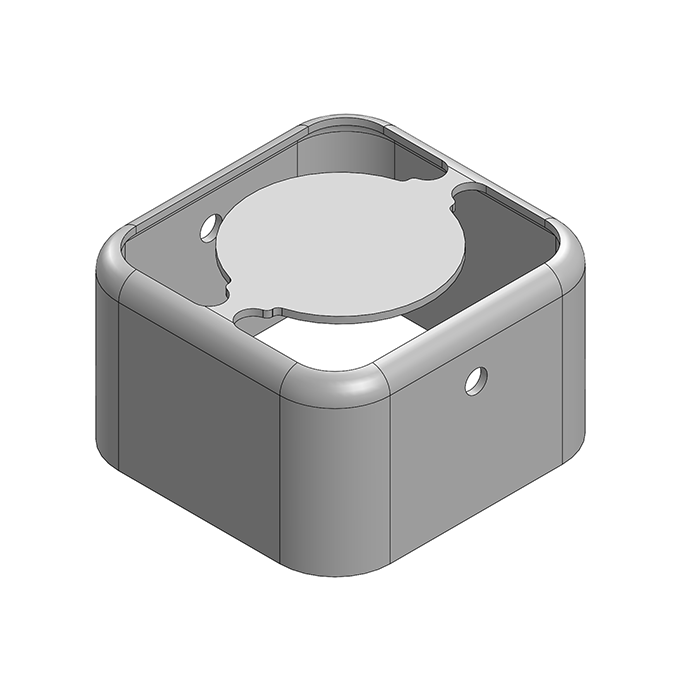

MS128-10F Shield
Get
MS128-10F
Drawn-Seamless EMI-RF Shield Frame 12.8 x 12.3 x 7.5mm (CRS)
RF Frame (2-Piece Shield) 12.8 mm 12.3 mm 7.5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS128-10F-NS Shield
Get
MS128-10F-NS
Drawn-Seamless EMI-RF Shield Frame 12.8 x 12.3 x 7.5mm (Nickel-Silver)
RF Frame (2-Piece Shield) 12.8 mm 12.3 mm 7.5 mm Non-Vented Nickel-Silver Tray IL (Israel)

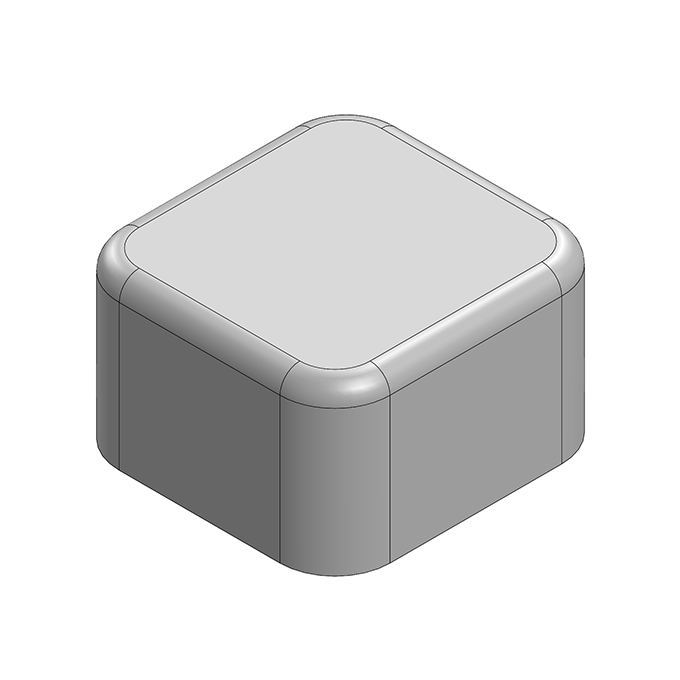

MS128-10S Shield
Get
MS128-10S
Drawn-Seamless EMI-RF Shield 12.8 x 12.3 x 7.5mm (CRS)
RF Shield (1-Piece Shield) 12.8 mm 12.3 mm 7.5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS128-10S-NS Shield
Get
MS128-10S-NS
Drawn-Seamless EMI-RF Shield 12.8 x 12.3 x 7.5mm (Nickel-Silver)
RF Shield (1-Piece Shield) 12.8 mm 12.3 mm 7.5 mm Non-Vented Nickel-Silver Tray IL (Israel)

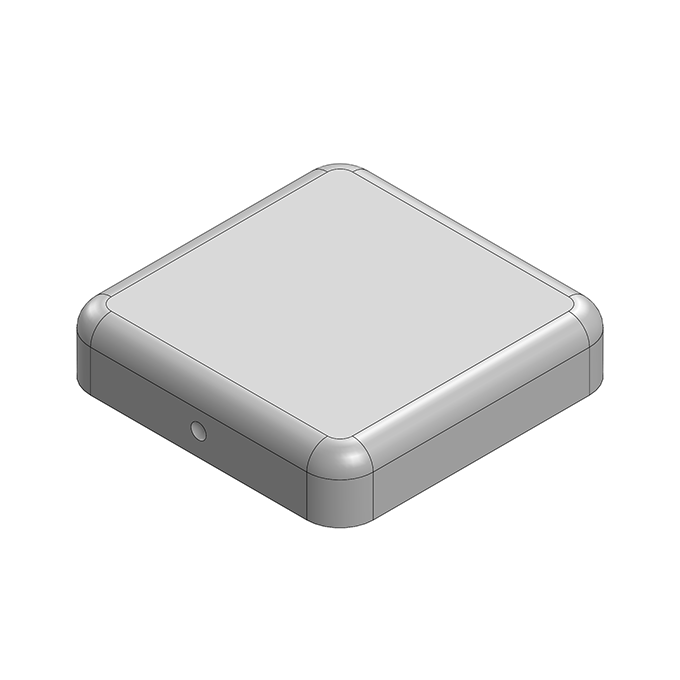

MS130-10C Shield
Get
MS130-10C
Drawn-Seamless EMI-RF Shield Cover 13.6 x 13.6 x 3mm (CRS)
RF Cover (2-Piece Shield) 13.6 mm 13.6 mm 3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS130-10C-NS Shield
Get
MS130-10C-NS
Drawn-Seamless EMI-RF Shield Cover 13.6 x 13.6 x 3mm (Nickel-Silver)
RF Cover (2-Piece Shield) 13.6 mm 13.6 mm 3 mm Non-Vented Nickel-Silver Tray IL (Israel)

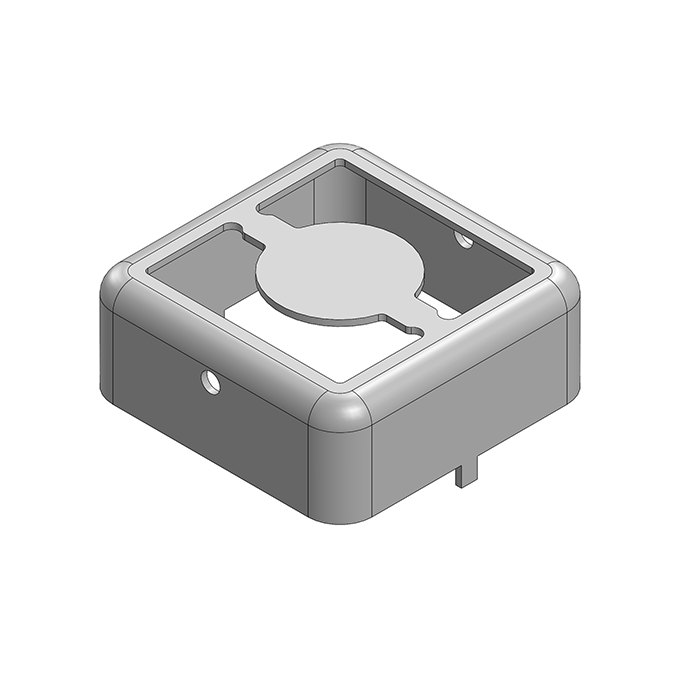

MS130-10F Shield
Get
MS130-10F
Drawn-Seamless EMI-RF Shield Frame 13 x 13 x 5mm (CRS)
RF Frame (2-Piece Shield) 13 mm 13 mm 5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS130-10F-NS Shield
Get
MS130-10F-NS
Drawn-Seamless EMI-RF Shield Frame 13 x 13 x 5mm (Nickel-Silver)
RF Frame (2-Piece Shield) 13 mm 13 mm 5 mm Non-Vented Nickel-Silver Tray IL (Israel)

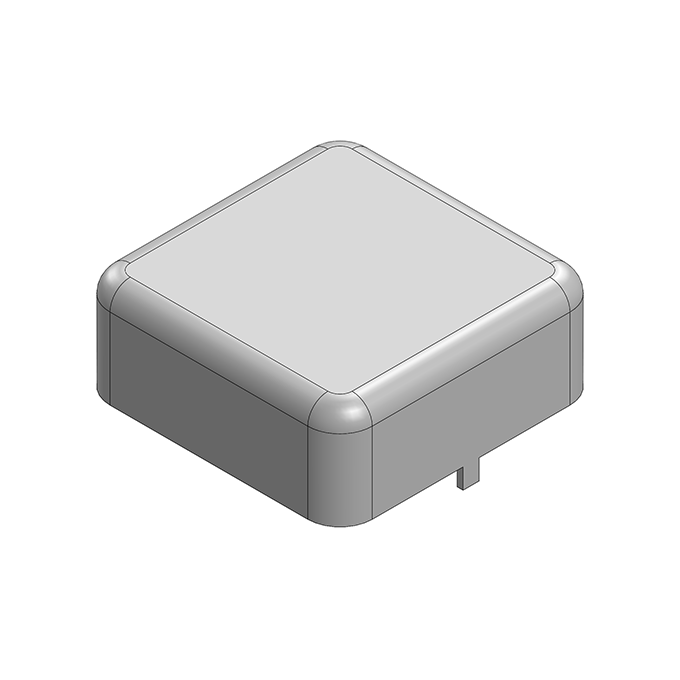

MS130-10S Shield
Get
MS130-10S
Drawn-Seamless EMI-RF Shield 13 x 13 x 5mm (CRS)
RF Shield (1-Piece Shield) 13 mm 13 mm 5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS130-10S-NS Shield
Get
MS130-10S-NS
Drawn-Seamless EMI-RF Shield 13 x 13 x 5mm (Nickel-Silver)
RF Shield (1-Piece Shield) 13 mm 13 mm 5 mm Non-Vented Nickel-Silver Tray IL (Israel)
