MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
MS Part # Configuration Length Width Height Ventilation Raw Material Packaging COO

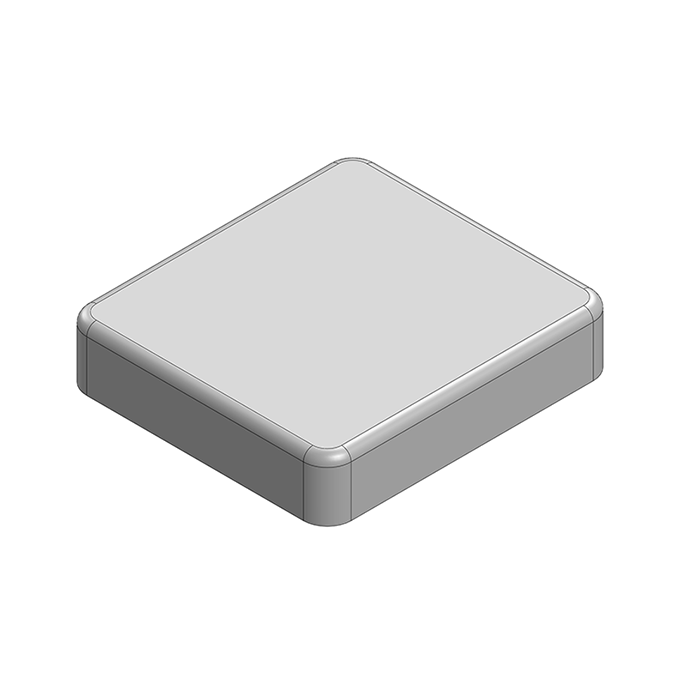

MS182-10S Shield
Get
MS182-10S
Drawn-Seamless EMI-RF Shield 18.2 x 16.6 x 3.8mm (CRS)
RF Shield (1-Piece Shield) 18.2 mm 16.6 mm 3.8 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS182-10S-NS Shield
Get
MS182-10S-NS
Drawn-Seamless EMI-RF Shield 18.2 x 16.6 x 3.8mm (Nickel-Silver)
RF Shield (1-Piece Shield) 18.2 mm 16.6 mm 3.8 mm Non-Vented Nickel-Silver Tray IL (Israel)

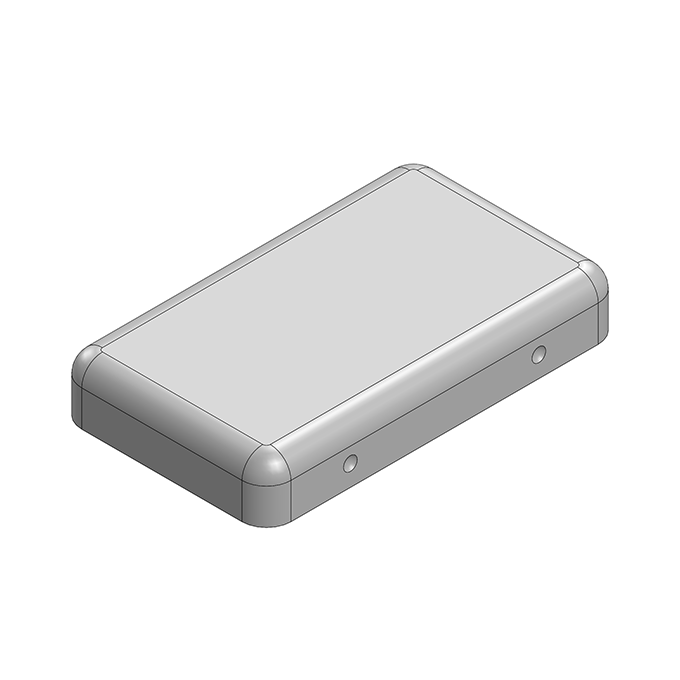

MS183-10C Shield
Get
MS183-10C
Drawn-Seamless EMI-RF Shield Cover 18.9 x 11.1 x 3mm (CRS)
RF Cover (2-Piece Shield) 18.9 mm 11.1 mm 3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS183-10C-NS Shield
Get
MS183-10C-NS
Drawn-Seamless EMI-RF Shield Cover 18.9 x 11.1 x 3mm (Nickel-Silver)
RF Cover (2-Piece Shield) 18.9 mm 11.1 mm 3 mm Non-Vented Nickel-Silver Tray IL (Israel)

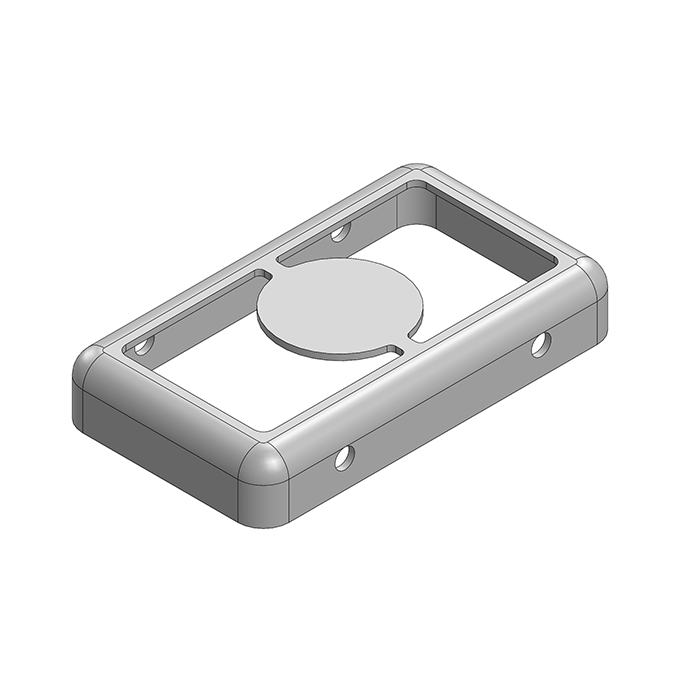

MS183-10F Shield
Get
MS183-10F
Drawn-Seamless EMI-RF Shield Frame 18.3 x 10.5 x 3mm (CRS)
RF Frame (2-Piece Shield) 18.3 mm 10.5 mm 3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS183-10F-NS Shield
Get
MS183-10F-NS
Drawn-Seamless EMI-RF Shield Frame 18.3 x 10.5 x 3mm (Nickel-Silver)
RF Frame (2-Piece Shield) 18.3 mm 10.5 mm 3 mm Non-Vented Nickel-Silver Tray IL (Israel)

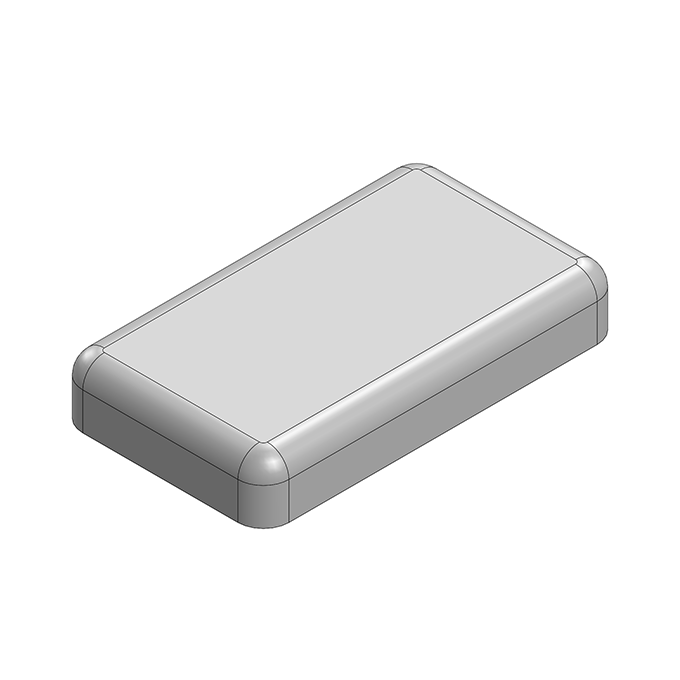

MS183-10S Shield
Get
MS183-10S
Drawn-Seamless EMI-RF Shield 18.3 x 10.5 x 3mm (CRS)
RF Shield (1-Piece Shield) 18.3 mm 10.5 mm 3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS183-10S-NS Shield
Get
MS183-10S-NS
Drawn-Seamless EMI-RF Shield 18.3 x 10.5 x 3mm (Nickel-Silver)
RF Shield (1-Piece Shield) 18.3 mm 10.5 mm 3 mm Non-Vented Nickel-Silver Tray IL (Israel)

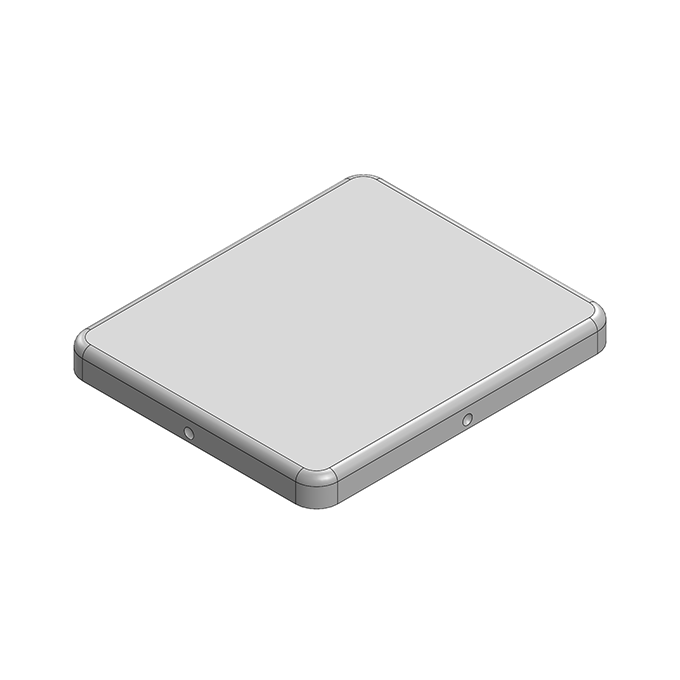

MS183-20C Shield
Get
MS183-20C
Drawn-Seamless EMI-RF Shield Cover 18.7 x 15.8 x 1.7mm (CRS)
RF Cover (2-Piece Shield) 18.7 mm 15.8 mm 1.7 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS183-20C-NS Shield
Get
MS183-20C-NS
Drawn-Seamless EMI-RF Shield Cover 18.7 x 15.8 x 1.7mm (Nickel-Silver)
RF Cover (2-Piece Shield) 18.7 mm 15.8 mm 1.7 mm Non-Vented Nickel-Silver Tray IL (Israel)

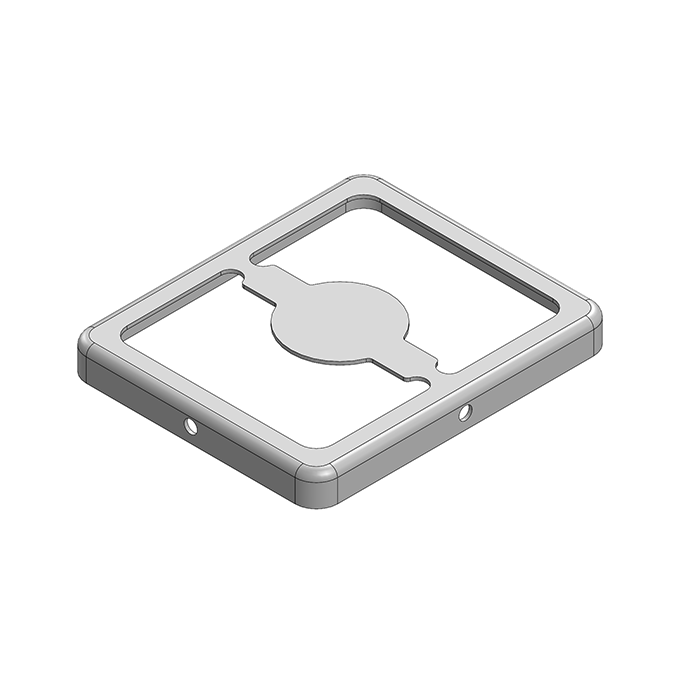

MS183-20F Shield
Get
MS183-20F
Drawn-Seamless EMI-RF Shield Frame 18.3 x 15.4 x 1.9mm (CRS)
RF Frame (2-Piece Shield) 18.3 mm 15.4 mm 1.9 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS183-20F-NS Shield
Get
MS183-20F-NS
Drawn-Seamless EMI-RF Shield Frame 18.3 x 15.4 x 1.9mm (Nickel-Silver)
RF Frame (2-Piece Shield) 18.3 mm 15.4 mm 1.9 mm Non-Vented Nickel-Silver Tray IL (Israel)
