| MS511-10S | |
|---|---|
|

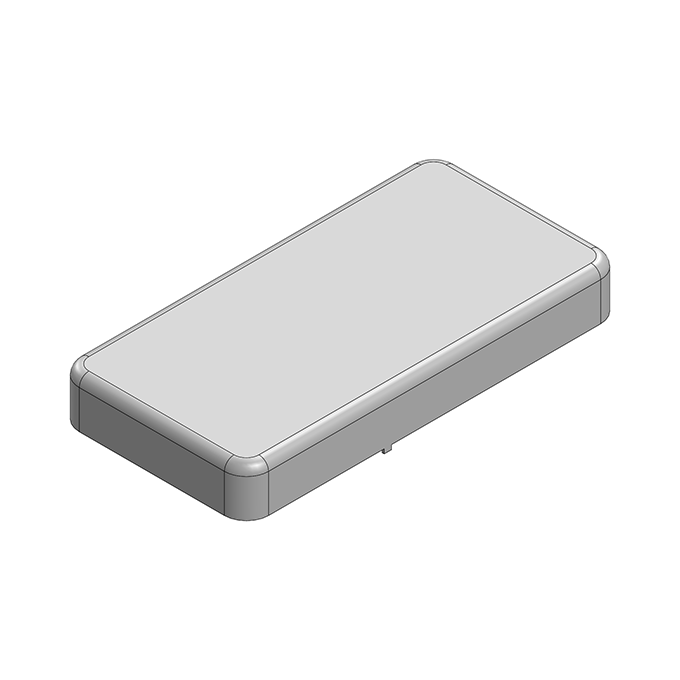

51.1 x 25.7 x 6.5mm One-piece Drawn-Seamless RF Shield / EMI Shield
|
MS511-10S |
|
|---|---|
|
51.1 x 25.7 x 6.5mm One-piece Drawn-Seamless RF Shield / EMI Shield
|
|
| Item Configuration | 1-piece EMI/RFI Shield |
| Item Length | 51.1 mm |
| Item Width | 25.7 mm |
| Item Height | 6.5 mm |
| Ventilation | Non-Vented |
| Mounting Type | SMD/SMT Soldering |
| Raw Material | Tin-Steel (CRS) |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-

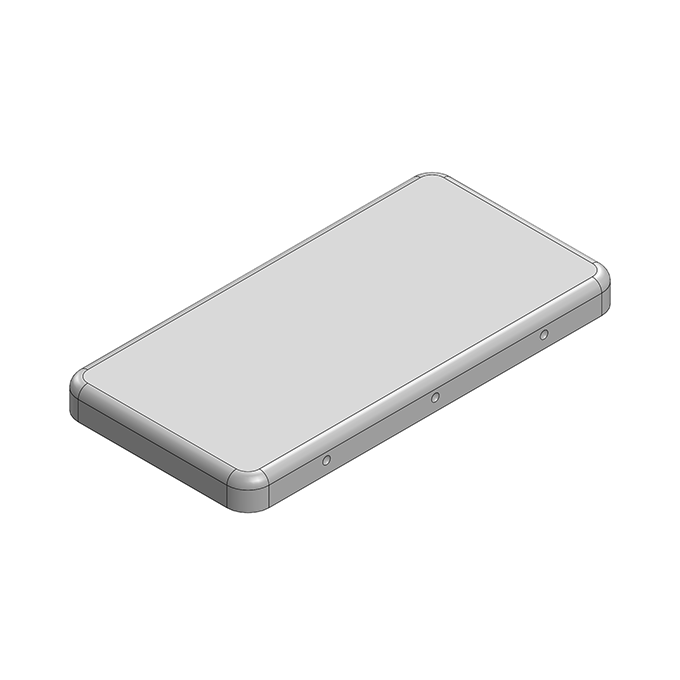

MS511-10C51.7 x 26.3 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -

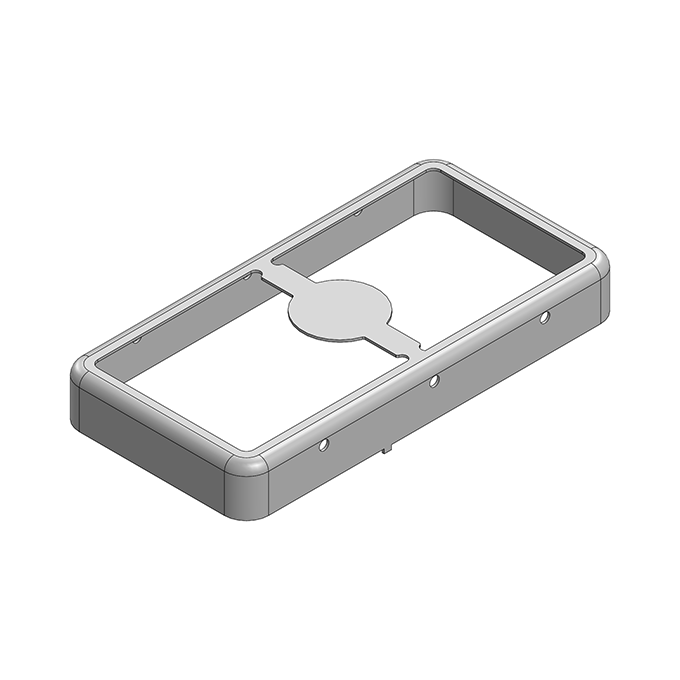

MS511-10F51.1 x 25.7 x 6.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -
MS511-10S51.1 x 25.7 x 6.5mm One-piece Drawn-Seamless RF Shield / EMI Shield (CRS) -
MS511-10C-NS51.7 x 26.3 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver)
-
MS511-10F-NS51.1 x 25.7 x 6.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (Nickel-Silver)
-
MS511-10S-NS51.1 x 25.7 x 6.5mm One-piece Drawn-Seamless RF Shield / EMI Shield (Nickel-Silver)
