| MS415-20C-NS | |
|---|---|
|

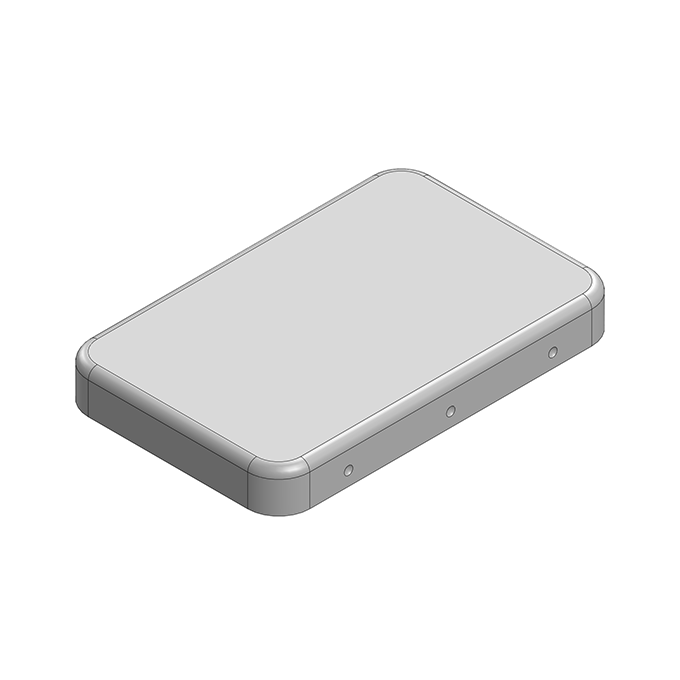

42.1 x 27.1 x 5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER
|
MS415-20C-NS |
|
|---|---|
|
42.1 x 27.1 x 5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER
|
|
| Item Configuration | 2-piece EMI/RFI Shield COVER |
| Item Length | 42.1 mm |
| Item Width | 27.1 mm |
| Item Height | 5 mm |
| Ventilation | Non-Vented |
| Mounting Type | Snap Fit on FRAME |
| Raw Material | Nickel-Silver |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-
MS415-20C42.1 x 27.1 x 5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -

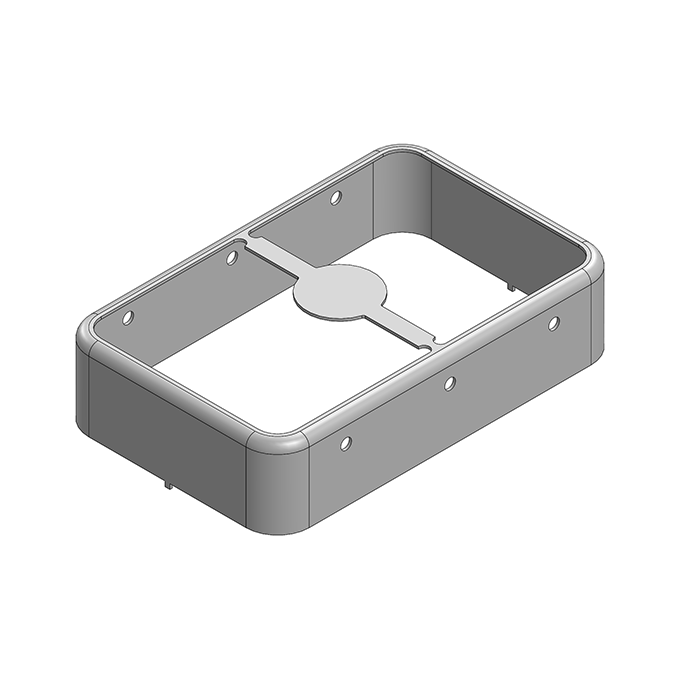

MS415-20F41.5 x 26.5 x 9.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -
MS415-20S41.5 x 26.5 x 9.5mm One-piece Drawn-Seamless RF Shield / EMI Shield (CRS) -
MS415-20C-NS42.1 x 27.1 x 5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver) -
MS415-20F-NS41.5 x 26.5 x 9.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (Nickel-Silver) -
MS415-20S-NS41.5 x 26.5 x 9.5mm One-piece Drawn-Seamless RF Shield / EMI Shield (Nickel-Silver)
