| MS260-10F-NS | |
|---|---|
|
26 x 23 x 7.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME
|
MS260-10F-NS |
|
|---|---|
|
26 x 23 x 7.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME
|
|
| Item Configuration | 2-piece EMI/RFI Shield FRAME |
| Item Length | 26 mm |
| Item Width | 23 mm |
| Item Height | 7.8 mm |
| Ventilation | Non-Vented |
| Mounting Type | SMD/SMT Soldering |
| Raw Material | Nickel-Silver |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-
MS260-10C26.6 x 23.6 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -
MS260-10CP26.6 x 23.6 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER Perforated (CRS) -

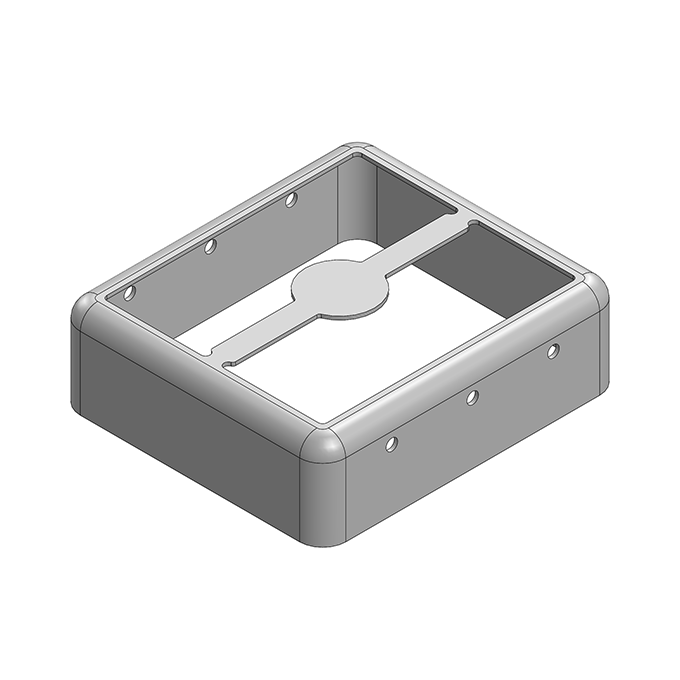

MS260-10F26 x 23 x 7.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -
-
MS260-10C-NS26.6 x 23.6 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver)
-

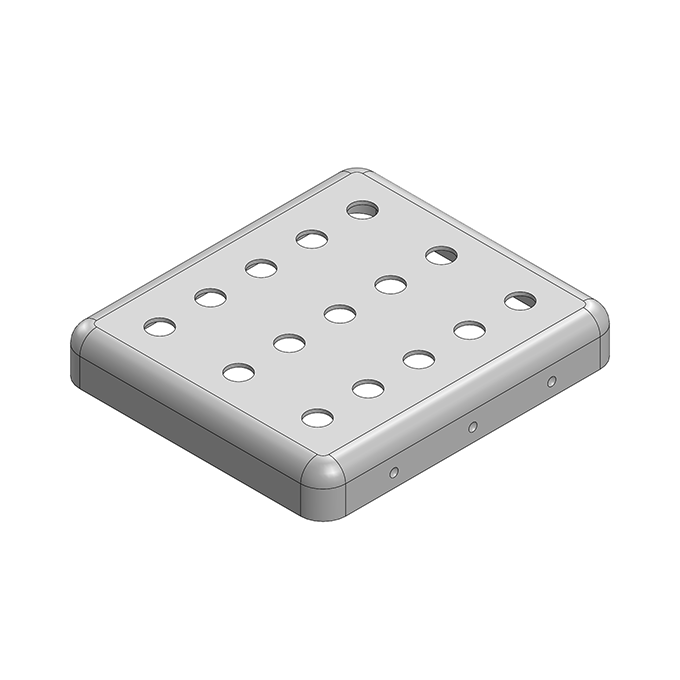

MS260-10CP-NS26.6 x 23.6 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER Perforated (Nickel-Silver)
-
MS260-10F-NS26 x 23 x 7.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (Nickel-Silver)
-

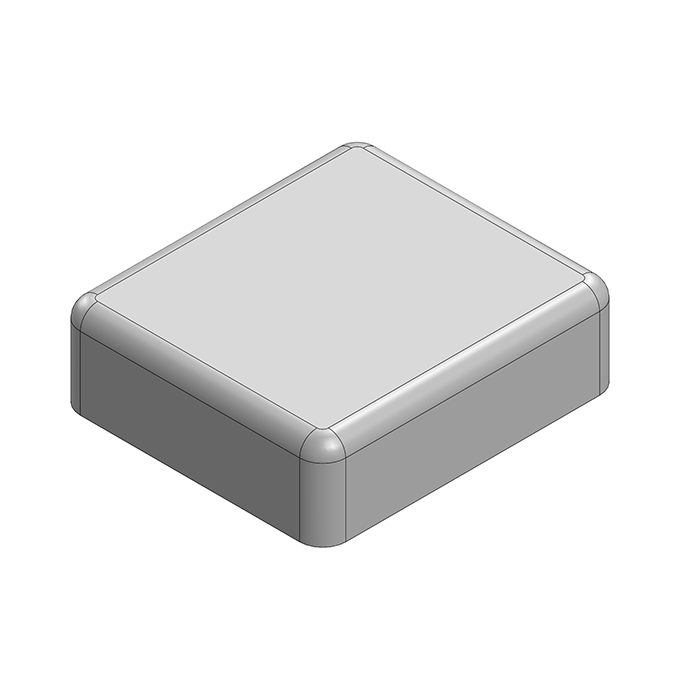

MS260-10S-NS26 x 23 x 7.8mm One-piece Drawn-Seamless RF Shield / EMI Shield (Nickel-Silver)
