| MS230-20S | |
|---|---|
|
23 x 14.8 x 3.8mm One-piece Drawn-Seamless RF Shield / EMI Shield
|
MS230-20S |
|
|---|---|
|
23 x 14.8 x 3.8mm One-piece Drawn-Seamless RF Shield / EMI Shield
|
|
| Item Configuration | 1-piece EMI/RFI Shield |
| Item Length | 23 mm |
| Item Width | 14.8 mm |
| Item Height | 3.8 mm |
| Ventilation | Non-Vented |
| Mounting Type | SMD/SMT Soldering |
| Raw Material | Tin-Steel (CRS) |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| EU RoHS & Reach Declaration |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-

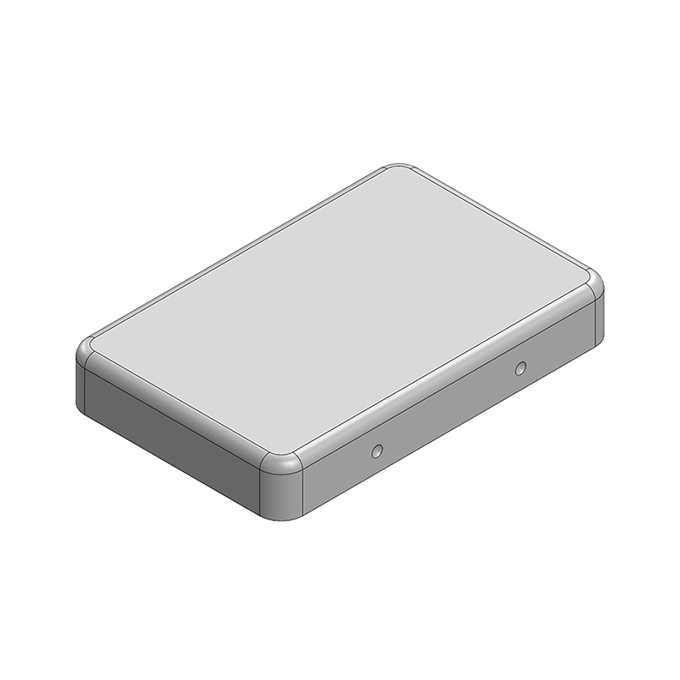

MS230-20C23.4 x 15.2 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -
MS230-20F23 x 14.8 x 3.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -
-
MS230-20C-NS23.4 x 15.2 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver)
-
MS230-20F-NS23 x 14.8 x 3.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (Nickel-Silver)
-
MS230-20S-NS23 x 14.8 x 3.8mm One-piece Drawn-Seamless RF Shield / EMI Shield (Nickel-Silver)
