Drawn-Seamless EMI-RF Shield 20.9 x 15.3 x 1.7mm

MS209-10S
Drawn-Seamless EMI-RF Shield 20.9 x 15.3 x 1.7mm (CRS)

MS209-10S
Drawn-Seamless EMI-RF Shield 20.9 x 15.3 x 1.7mm (CRS)
Item Configuration	RF Shield (1-Piece Shield)
Item Length	20.9 mm
Item Width	15.3 mm
Item Height	1.7 mm
Ventilation	Non-Vented
Mounting Type	SMD/SMT Soldering
Raw Material	Tin-Steel (CRS)
Packaging	Tray
RoHS Compliance
COO	IL (Israel)

Product Global Availability

Select..

Optional Shield Configurations

MS209-10C
Drawn-Seamless EMI-RF Shield Cover 21.3 x 15.7 x 1.7mm (CRS)

RoHS Global Stock
MS209-10F
Drawn-Seamless EMI-RF Shield Frame 20.9 x 15.3 x 1.7mm (CRS)

RoHS Global Stock
MS209-10S
Drawn-Seamless EMI-RF Shield 20.9 x 15.3 x 1.7mm (CRS)

RoHS Global Stock

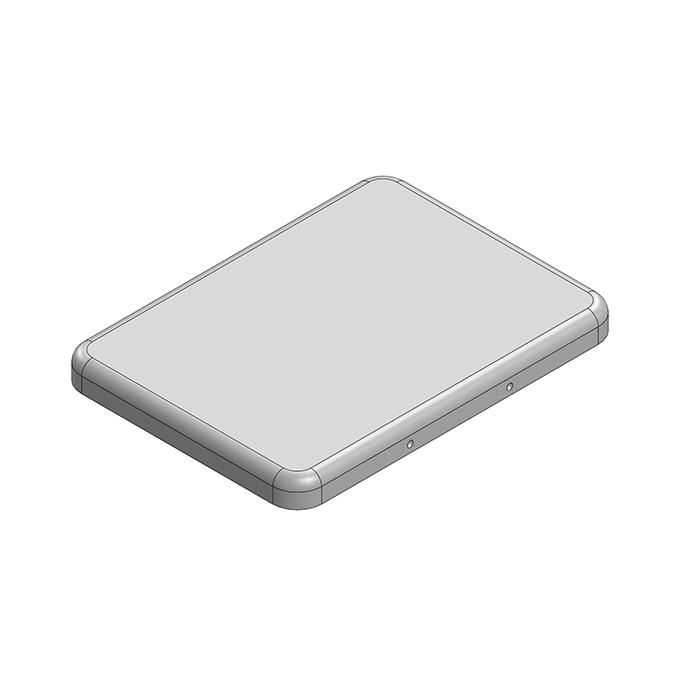

MS209-10C-NS
Drawn-Seamless EMI-RF Shield Cover 21.3 x 15.7 x 1.7mm (Nickel-Silver)

RoHS Global Stock

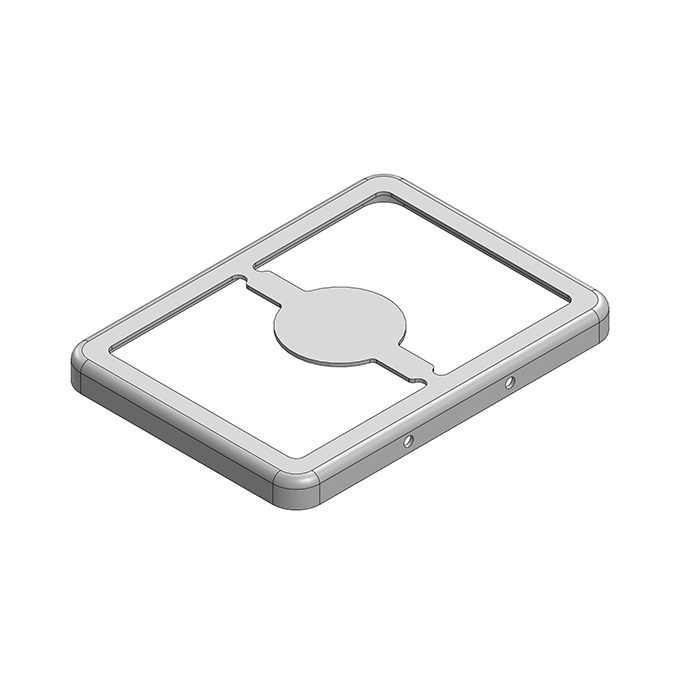

MS209-10F-NS
Drawn-Seamless EMI-RF Shield Frame 20.9 x 15.3 x 1.7mm (Nickel-Silver)

RoHS Global Stock
MS209-10S-NS
Drawn-Seamless EMI-RF Shield 20.9 x 15.3 x 1.7mm (Nickel-Silver)

RoHS Global Stock
