| MS191-10C | |
|---|---|
|

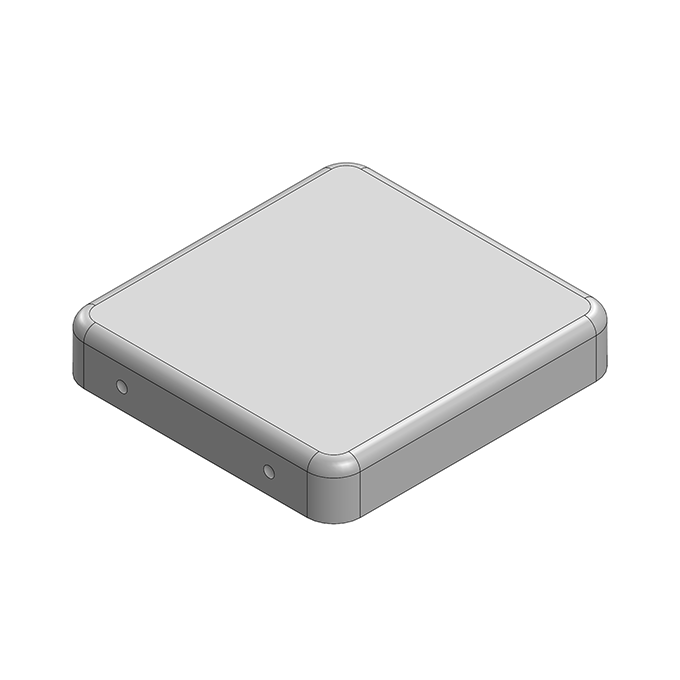

19.7 x 18.8 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER
|
MS191-10C |
|
|---|---|
|
19.7 x 18.8 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER
|
|
| Item Configuration | 2-piece EMI/RFI Shield COVER |
| Item Length | 19.7 mm |
| Item Width | 18.8 mm |
| Item Height | 3.5 mm |
| Ventilation | Non-Vented |
| Mounting Type | Snap Fit on FRAME |
| Raw Material | Tin-Steel (CRS) |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
Optional Shield Configurations
-
MS191-10C19.7 x 18.8 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -

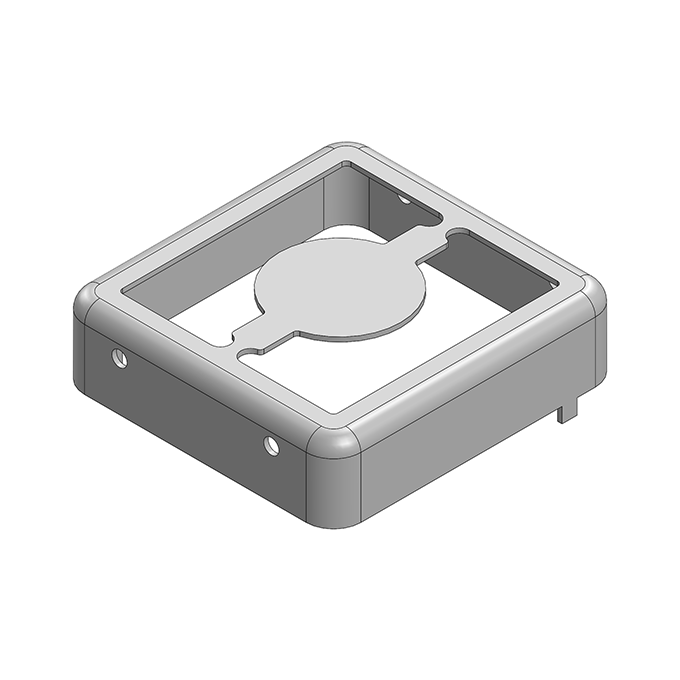

MS191-10F19.1 x 18.2 x 5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -
-
MS191-10C-NS19.7 x 18.8 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver) -
MS191-10F-NS19.1 x 18.2 x 5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (Nickel-Silver) -

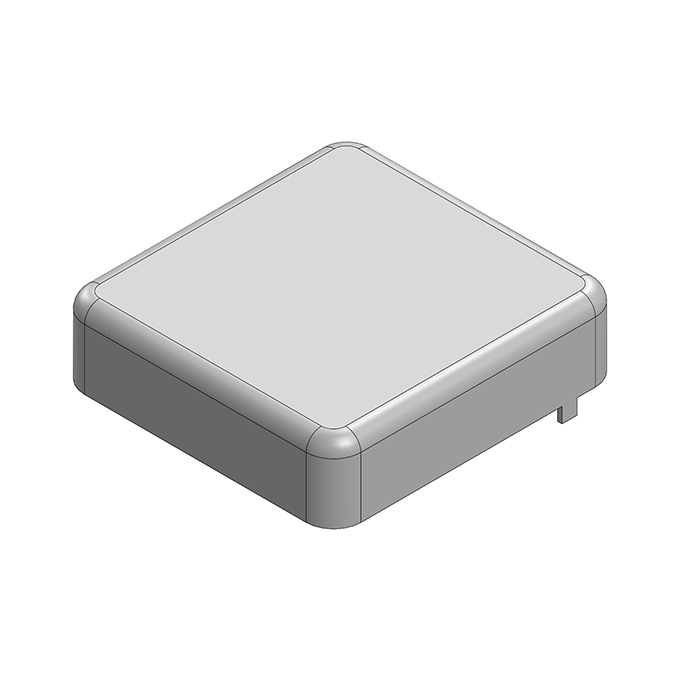

MS191-10S-NS19.1 x 18.2 x 5mm One-piece Drawn-Seamless RF Shield / EMI Shield (Nickel-Silver)
