Drawn-Seamless EMI/RFI Shields

MS Part #

Configuration

Length

Width

Height

Ventilation

Raw Material

Packaging

COO

MS Part #	Configuration	Length	Width	Height	Ventilation	Raw Material	Packaging	COO
Get MS193-10S 19.3 x 10.5 x 3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	19.3 mm	10.5 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS193-10S-NS 19.3 x 10.5 x 3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	19.3 mm	10.5 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

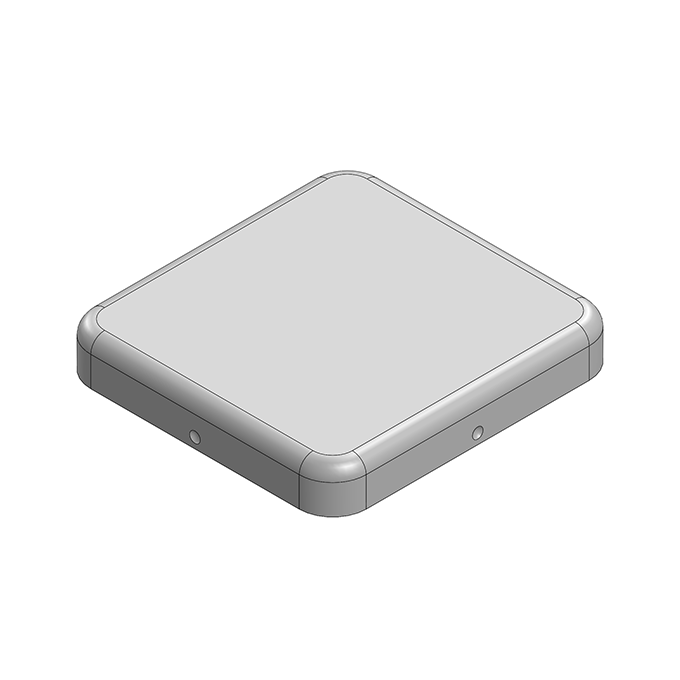

Get MS193-20C 19.9 x 18.9 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	19.9 mm	18.9 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS193-20C-NS 19.9 x 18.9 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	19.9 mm	18.9 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

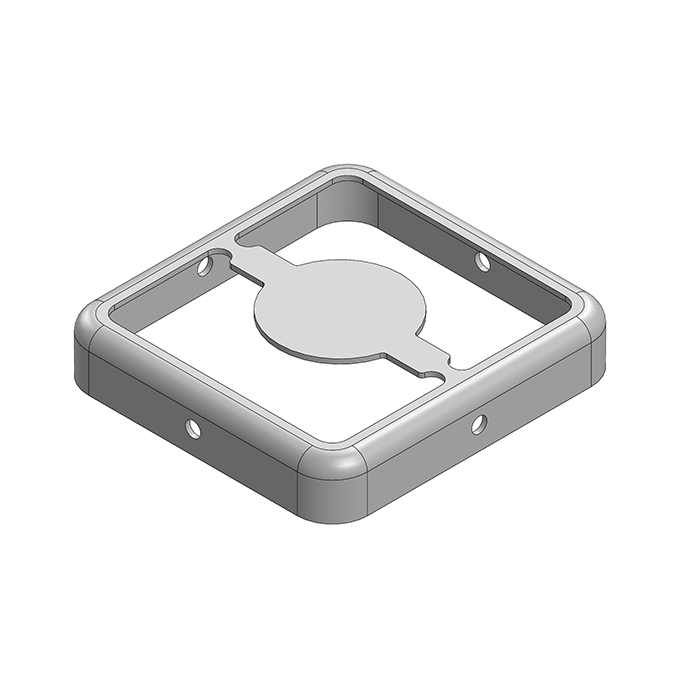

Get MS193-20F 19.3 x 18.3 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	19.3 mm	18.3 mm	3.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS193-20F-NS 19.3 x 18.3 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	19.3 mm	18.3 mm	3.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

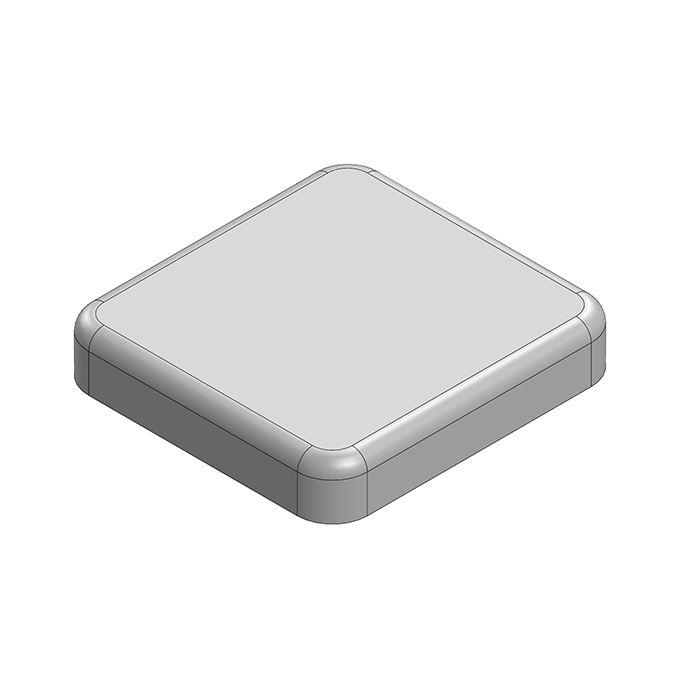

Get MS193-20S 19.3 x 18.3 x 3.5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	19.3 mm	18.3 mm	3.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS193-20S-NS 19.3 x 18.3 x 3.5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	19.3 mm	18.3 mm	3.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS199-10C 20.3 x 9.6 x 2mm Two-piece Drawn-Seamless RF Shield/EMI Shield COVER	2-piece EMI/RFI Shield COVER	20.3 mm	9.6 mm	2 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS199-10C-NS 20.3 x 9.6 x 2mm Two-piece Drawn-Seamless RF Shield/EMI Shield COVER	2-piece EMI/RFI Shield COVER	20.3 mm	9.6 mm	2 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS199-10F 19.9 x 9.2 x 2mm Two-piece Drawn-Seamless RF Shield/EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	19.9 mm	9.2 mm	2 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS199-10F-NS 19.9 x 9.2 x 2mm Two-piece Drawn-Seamless RF Shield/EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	19.9 mm	9.2 mm	2 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
